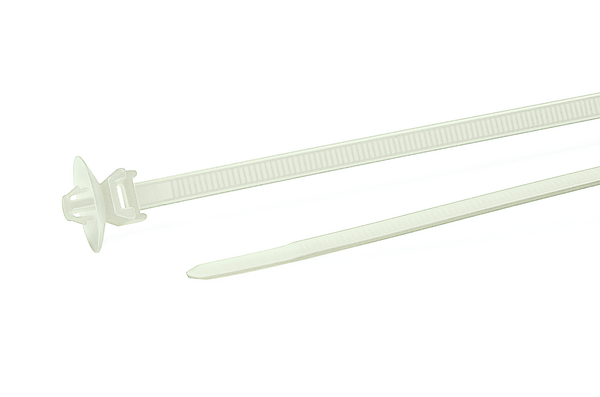

Fixing tie for hole (round), outside serrated, ∅1.0-35.0mm, natural, 1000pcs.
Art.-No. 126-00111 | T50SOSKSFT5S-E-PA66HS-NA | 세부

Easy to install without the need for a tool
Arrowhead simply locks into place
Disc adjusts tie for pressures from various directions and minimises ingress of dust and dirt
Cable tie head always situated in a defined position
KSFT-types with specially rounded arrowhead minimise the assembly height

More products in this product group:

Application	Fixing ties with arrowhead are ideal for use in many different industries, including automotive, aerospace and panel building.
Colour	Natural (NA)
Fixation Method	arrowhead
Identification Plate Position	none
Material	Polyamide 6.6, heat stabilised (PA66HS)
PART DESCRIPTION	T50SOSKSFT5S-E-PA66HS-NA
Pack Content	1000pcs.
Package Content packed in	bag
Product Family	for round holes
Product Group	1-piece fixing ties with arrowhead, with disc
Releasable Closure (Yes/No)	No
Tie Closure	plastic pawl
Type	T50SOSKSFT5S-E
Variant	Outside Serrated

Bundle Diameter max (metric)	35.0mm
Bundle ∅ min.	1.0mm
Disc ∅	0.63"
Disc ∅	16.0mm
Length (L)	156.0mm
Min.Tensile Strength	180N
Panel Thickness	0.02 " – 0.05"
Panel Thickness max.	0.7 – 1.3mm
Panel Thickness max. (imperial)	0.05"
Panel Thickness min. (imperial)	0.02"
Thickness (T)	1.3mm
Width (W)	4.6mm
for Hole ∅ (FH)	4.8 - 5.2 mm
for Panel Thickness min - max	0.7 - 1.3 mm
for Panel Thickness min - max	0 - 0.1 "
