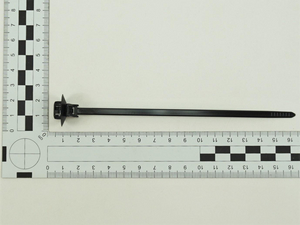

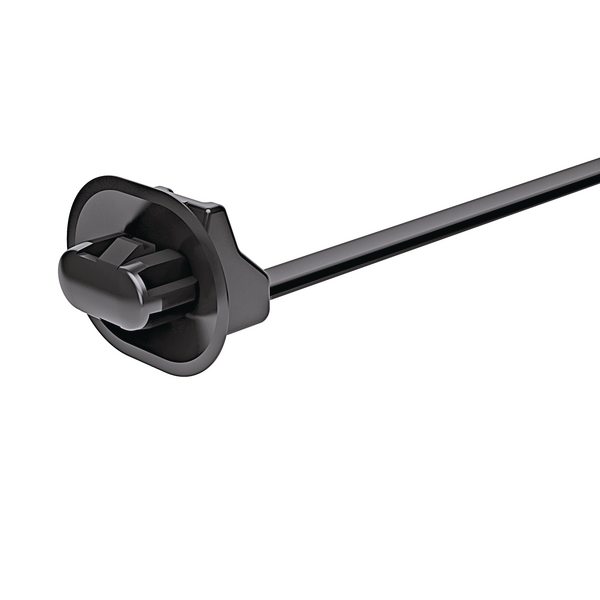

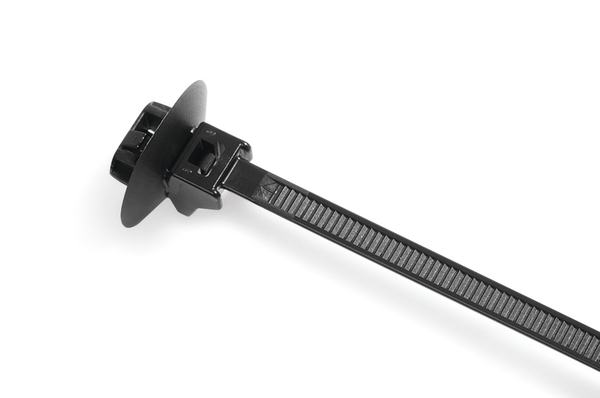

Fixing tie for hole (oval), outside serrated, ∅1.5-35.0mm, black, 1000pcs.
Art.-No. 126-00142 | T50SOSKSFT62x122PT1.7-2.3-PA66HS-BK 세부

  • Easy to install without the need for a tool
  • Arrowhead simply locks into place
  • Disc adjusts tie for pressures from various directions and minimises access of dust and dirt
  • Cable tie head always situated in a defined position

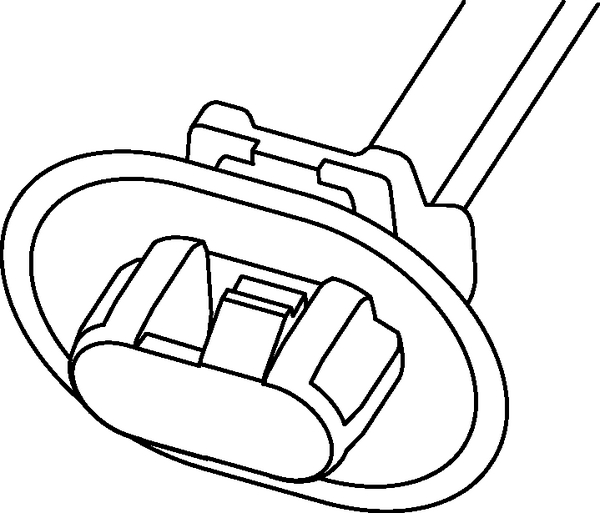

  • Versions for oval holes feature anti-twist protection
Show more
Application With a diverse range of fixing possibilities are ideal for use in many different industries, including automotive, aerospace and panel building.
Colour Black (BK)
Fixation Method Arrowhead for oval holes
Identification Plate Position none
Material Polyamide 6.6, heat stabilised (PA66HS)
PART DESCRIPTION T50SOSKSFT62x122PT1.7-2.3-PA66HS-BK
Pack Content 1000pcs.

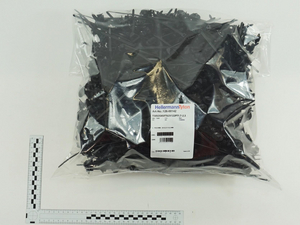

Package Content packed in bag
Product Family for oval holes
Product Group 1-piece fixing ties with arrowhead, with disc
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T50SOSKSFT62x122PT1.7-2.3
Variant Outside Serrated
Bundle Diameter max (metric) 35.0mm
Bundle ∅ min. 1.5mm
Disc ∅ 16.0 x 21.0
Fixing Hole Shape Oval
Length (L) 159.0mm
Min.Tensile Strength 225N
Thickness (T) 1.3mm
Width (W) 4.6mm
for Hole ∅ (FH) 6.2 x 12.2 mm
for Panel Thickness min - max 1.7 - 2.3 mm
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
Operating Temperature -40 °C to +105 °C
ROHS compliant Yes
Specifications
GTIN-13 / EAN 4031026411194
Packaging 1 - Qty 1000
Packaging 1 - Type bag
Packaging 1 - Weight (kg) 1.784216kg
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 4000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 7.956864kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 48000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 116.472kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121703
