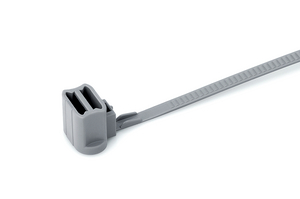

Fixing tie for stud, outside serrated, ∅1.0-35.0mm, grey, 1000pcs.
Art.-No. 157-00250 | T50SOSSB5-High-E-C-CC-PA66HS-GY 세부

  • One-piece fixing ties
  • High specification materials
  • Superior design
  • Suitable for complex applications
Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
Colour Grey (GY)
Fixation Method Weld Stud Fixing
Identification Plate Position none
Key product features products for automatic tools
Material Polyamide 6.6, heat stabilised (PA66HS)
PART DESCRIPTION T50SOSSB5-High-E-C-CC-PA66HS-GY
Pack Content 1000pcs.
Package Content packed in bag
Product Group 1-Piece Fixing Ties for Weld, moveable
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T50SOSSB5-High-E-C-CC
Variant Outside Serrated
Bundle Diameter max (metric) 35.0mm
Bundle ∅ min. 1.0mm
Length (L) 167.0mm
Max Stud Length 14.2mm
Min.Tensile Strength 225N
Stud ∅ 5.0 mm, M6
Width (W) 5.0mm
Flammability UL 94 V2
Operating Temperature -40 °C to +105 °C
ROHS compliant Yes
Specifications
GTIN-13 / EAN 4031026536606
UNSPSC Key 39121717
