13/11/2024

Fixing tie for stud, inside serrated, ∅2.0-31.0mm, black, 500Set
Art.-No. 156-00972 | T50SSB5SET-PA66HS/POM-BK | 세부

Versatile design allows cable routing above, perpendicular or parallel to stud.

Base Data

Application Tool	MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP
Cable Tie	Polyamide 6.6, heat stabilised (PA66HS)
Colour	Black (BK)
Content	500 T50S + 500 SB5S
Fixation Method	Weld Stud Fixing
Foot Part	Polyacetal (POM)
Identification Plate Position	none
Material	Polyamide 6.6, heat stabilised (PA66HS), Polyacetal (POM)
PART DESCRIPTION	T50SSB5SET-PA66HS/POM-BK
Pack Content	500Set
Package Content packed in	bag
Releasable Closure (Yes/No)	No
Tie Closure	plastic pawl
Type	T50SSB5SET
Variant	Inside Serrated

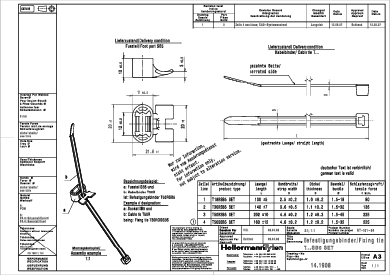

Product Dimensions

Bundle Diameter max (metric)	31.0mm
Bundle ∅ min.	2.0mm
Height (H)	1.2mm
Height (H2)	10mm
Length (L)	150mm
Length (L2)	20mm
Min Stud Length	14.2mm
Min.Tensile Strength	225N
Stud ∅	5.0 mm
Width (W)	4.6mm
Width (W2)	21.8mm

Downloads

Specifications

Flammability	UL 94 HB
Operating Temperature	-40 °C to +85 °C
Operating Temperature Foot Part (Metric)	-40 °C to +85 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

GTIN-13 / EAN

4031026450704

More Information

UNSPSC Key

39121731
