Fixing tie for hole (round), inside serrated, ∅45.0mm, grey, 500pcs.
Art.-No. 126-00093 | T80RSF6.5F-PA46-GY 세부

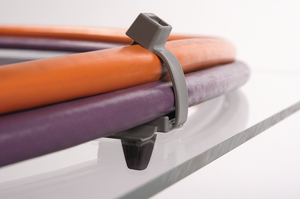

Application This range of fixing ties is ideal for use in many different industries, including automotive, aerospace and panel building. The T80RSF6.5FW features a detent that fits securely into the profile of the tubing which prevents from lateral movement and slipping.
Application Tool ProCut 9 no battery, MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9SP, EVO9i, EVO9iSP
Colour Grey (GY)
Description Arrowhead Push Ties secure fast and easy, while providing a disc feature to minimize the ingress of dust, dirt, and water. The anchor slides along the tie and adjusts for variations in panel thicknesses which insures a secure fixing at all times.
Fixation Method arrowhead
Identification Plate Position none
Material Polyamide 4.6 (PA46)
PART DESCRIPTION T80RSF6.5F-PA46-GY
Pack Content 500pcs.
Package Content packed in bag
Product Family T80RSF6.5F
Product Group 1-Piece Fixing Ties with Arrowhead, with Wings in the strap
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T80RSF6.5F
Variant Inside Serrated
Bundle Diameter max (metric) 45.0mm
Length (L) 209mm
Min.Tensile Strength 355N
Thickness (T) 1.3mm
Width (W) 4.6mm
for Hole ∅ (FH) 6.3 - 6.5 mm
for Panel Thickness min - max 0.6 - 3 mm
Flammability UL 94 V2
Operating Temperature -40 °C to +150 °C
ROHS compliant Yes
Specifications
UNSPSC Key 39121703
