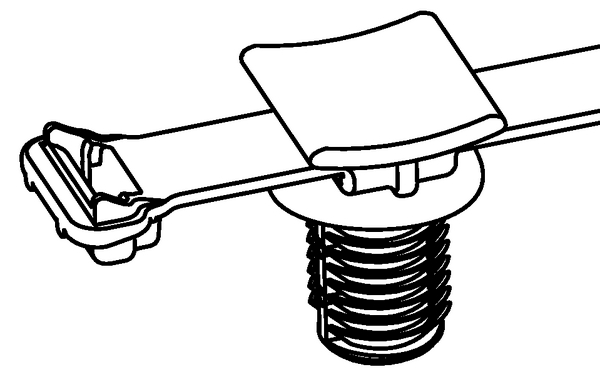

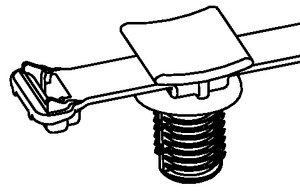

Fixing tie for hole (round), inside serrated, ∅9.4-57.15mm, black, 1200pcs.
Art.-No. 133-02001
| WSSFT12.7-SET-PA66HIRHSUV-BK
|
세부
| Colour | Black (BK) |
| Fixation Method | Fir Tree |
| Identification Plate Position | none |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | WSSFT12.7-SET-PA66HIRHSUV-BK |
| Pack Content | 1200pcs. |
| Package Content packed in | bag |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | WSSFT12.7-SET |
| Variant | Inside Serrated |
| Bundle Diameter max (metric) | 57.15mm |
| Bundle ∅ min. | 9.4mm |
| Height (H) | 29.6mm |
| Length (L) | 231.14mm |
| Min.Tensile Strength | 533N |
| Panel Thickness | 0.02 - 0.43" |
| Panel Thickness max. | 0.6 - 11.0mm |
| Panel Thickness max. (imperial) | 0.43" |
| Panel Thickness min. (imperial) | 0.02" |
| Width (W) | 22.6mm |
| for Hole ∅ (FH) | 12.3 - 13.1 mm |
| for Panel Thickness min - max | 0.6 - 11 mm |
| for Panel Thickness min - max | 0 - 0.4 " |
다운로드
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | Yes |
|
|
|
| GTIN-13 / EAN | 4031026519548 |
| Packaging 3 - Height (m) | 0.2159m |
| Packaging 3 - Length (m) | 0.606425m |
| Packaging 3 - Qty | 1200 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.052m³ |
| Packaging 3 - Weight (kg) | 10.76kg |
| Packaging 3 - Width (m) | 0.396875m |
| Packaging 4 - Height (m) | 1.244m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 18000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.194m³ |
| Packaging 4 - Weight (kg) | 88.35kg |
| Packaging 4 - Width (m) | 0.8m |
