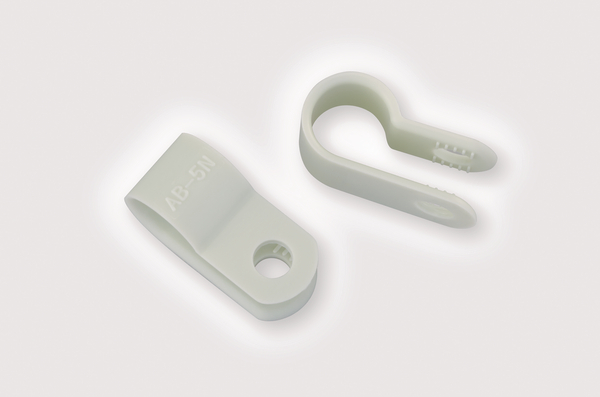

P-clamp closed, Dmax=7.5mm, ⌀4.3 mm, beige, 50pcs.
Art.-No. 211-00275 | AB5N-PA66HSW-BGE |

Copied
AB-5N-IVY

    • Primarily designed for coaxial cable 5c.
    • Weather Resistant but Ivory color.
    • Suitable for outdoor use on white color outer wall or cables.
    Downloads
    Application For permanent or semi-permanent cable fixings this range of plastic P-Clamps can be used in many industries. Their light weight makes them particularly suitable for use in areas such as aircraft and aerospace where minimising weight, but retaining a strong fixing, is vitally important.
    Colour Ivory (IV)
    Fixation Method screw-hole
    Key product features products for automatic tools, ergonomic design
    Material Polyamide 6.6, heat and UV-resistant (PA66HSW)
    Mounting Screw Type M4 Screw
    PART DESCRIPTION AB5N-PA66HSW-BGE
    Pack Content 50pcs.
    Package Content packed in bag
    Product Family HP-Series
    Product Group Plastic P-Clamps
    Type AB5N
    Variant Closed
    Bundle Diameter max (metric) 7.5mm
    Height (H2) 4.8mm
    Width (W) 9.5mm
    for Hole ⌀ (FH) 4.3 mm
    Flammability UL 94 V2
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.<BR>Sustainable by design focuses on product solutions that reduce waste, improve longevity or support subsequent reuse and recyclability. Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.
    Sustainable by design focuses on product solutions that reduce waste, improve longevity or support subsequent reuse and recyclability.
    UV-Stabilised No
    GTIN-13 / EAN 4944387121759
    UNSPSC Key 31162305
