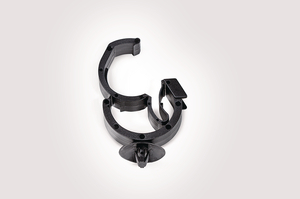

Cable clip for hole (oval), ∅6.2 x 12.2 mm, Dmin=19.0mm, Dmax=28.0mm
Art.-No. 151-00370 | AHC3BHR-PA66HIRHS-BK |  세부

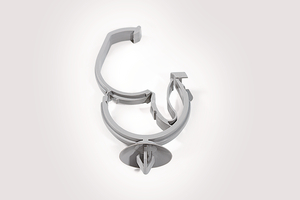

Automatic Harness Clip Family for oval holes.

    • Push and click closure for fixing of wires
    • Clip is clicked into a specific hole
    • AHC( )SS und AHC( )SB can be pushed onto a 5.0 mm stud
    Downloads CAD-Download

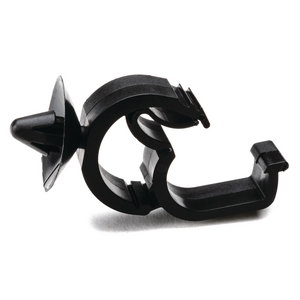

    Application Offering a simple and secure method of attaching cables to panels. Originally designed for the automotive industry, these products are used in a wide range of applications with sheet metal panels across various industries.
    Colour Black (BK)
    Key product features for faster processing, for multiple routing, lockable
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION AHC3BHR-PA66HIRHS-BK
    Pack Content 400pcs.
    Package Content packed in carton
    Product Family AHC-Series
    Product Group Fixing Elements for Tubes and Harnesses with Automatic Locking Feature
    Type AHC3BHR
    Attach to Ø 19.0 - 28.0
    Bundle Diameter max (metric) 28.0mm
    Bundle ∅ min. 19.0mm
    Disc ∅ 24.0mm
    Length (L) 47.4mm
    Length (L2) 7.0mm
    Width (W) 14.0mm
    for Hole ∅ (FH) 6.2 x 12.2 mm
    for Panel Thickness min - max 0.7 - 3 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026313108
    Packaging 1 - Height (m) 0.16m
    Packaging 1 - Length (m) 0.392m
    Packaging 1 - Qty 400
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01831m³
    Packaging 1 - Weight (kg) 3.3984kg
    Packaging 1 - Width (m) 0.292m
    Packaging 3 - Height (m) 0.2m
    Packaging 3 - Length (m) 0.4m
    Packaging 3 - Qty 400
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.024m³
    Packaging 3 - Weight (kg) 3.6448kg
    Packaging 3 - Width (m) 0.3m
    Packaging 4 - Height (m) 1.144m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 16000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.098m³
    Packaging 4 - Weight (kg) 166.792kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121702
