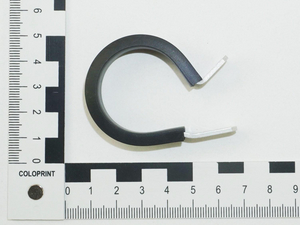

P-clamp closed, Dmax=28.6mm, ∅5.2 mm, black, 50pcs.
Art.-No. 211-15200 | ALU20C-AL/CR-BK |  세부

P-Clips (Alu) with Rubber Insert for vibration resistance

    • Simple and secure pipe or cable fixation
    • Can be combined with chloroprene rubber for vibration resistance
    • Ideal for use in high temperature applications
    • Suitable for applications needing strength of metal components
    Downloads CAD-Download
    Application Manufactured from a high quality aluminium, these metal P-Clamps provide flexibility whilst providing a permanent fixing in the most arduous of environments. The addition of a chloroprene insert provides the cable or pipe bundle with a high degree of protection against vibration, reducing noise and also providing electrical isolation. They are commonly used in caravan construction, the defence and railway industry as well as in the renewable energy sector.
    Colour Black (BK)
    Fixation Method screw-hole
    Material Aluminium alloy (AL), Chloroprene Rubber (CR)
    PART DESCRIPTION ALU20C-AL/CR-BK
    Pack Content 50pcs.
    Package Content packed in pcs.
    Product Family Alu-P-Clamp with / without chloroprene insert
    Product Group Aluminium P-Clamps
    Type ALU20C
    Variant Closed
    Bundle Diameter max (metric) 28.6mm
    Fixing Hole Centres (F2) 27.0mm
    Fixing Hole Centres (F3) 5.5mm
    Nominal ∅ 1.13"
    Nominal ∅ 28.6mm
    Radius (R) 3.2mm
    Wall (WT) 0.18"
    Wall (WT) 4.5mm
    Wall (WT2) 1.6mm
    Width (W) 16.3mm
    Width (W2) 0.50"
    Width (W2) 12.7mm
    for Hole ∅ (FH) 5.2 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Nato number 5340-12-350-1100
    Operating Temperature -20 °C to +80 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised Yes
    GTIN-13 / EAN 4031026129228
    Packaging 1 - Height (m) 0.15m
    Packaging 1 - Length (m) 0.3m

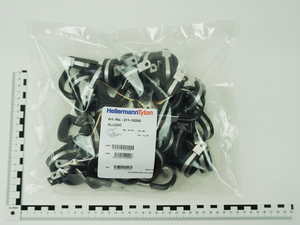

    Packaging 1 - Qty 50
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0117m³
    Packaging 1 - Weight (kg) 0.734212kg
    Packaging 1 - Width (m) 0.26m
    Packaging 3 - Height (m) 0.25m
    Packaging 3 - Length (m) 0.33m
    Packaging 3 - Qty 300
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0198m³
    Packaging 3 - Weight (kg) 4.730272kg
    Packaging 3 - Width (m) 0.24m
    Packaging 4 - Height (m) 1.144m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 12000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.098m³
    Packaging 4 - Weight (kg) 210.244kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121702
