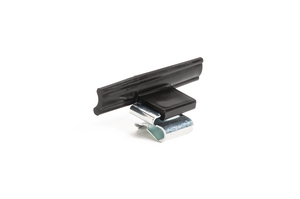

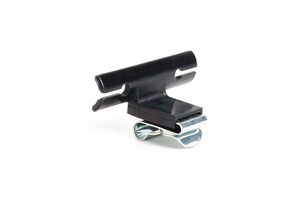

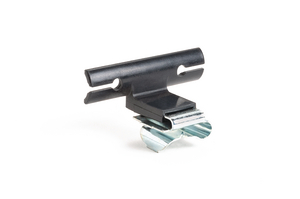

Bundling clip for edge, L=39.0mm, black, 500pcs.
Art.-No. 102-68375 | ATSBCEC37-PA66HIRHS-BK |  세부

Bundling Clip for edges 1.5 - 4 mm. Designed for our Autotools.

    • Easy assembly, just shuffle manually
    • Designed for edges of 1 - 3 and 1.5 - 4 mm
    • Integrated metal clamp holds clip firmly in place
    • Clamp consists of double tempered steel spring
    • ATS fixing elements can be tied automatically with tools ATS3080, AT2000 or AT2000CPK
    Show more
    Downloads
    Application This EdgeClip with bundling bar is special designed for automatisation processes. They can be used with the Autotool CPK hybrid and Autotool Systems 3080 / ATS flex but also with other cable ties or tapes. This product can beused on edges 1.5 - 4 mm.
    Colour Black (BK)
    Fixation Method Edge Clip
    Key product features products for automatic tools
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION ATSBCEC37-PA66HIRHS-BK
    Pack Content 500pcs.
    Package Content packed in bag
    Type ATSBCEC37
    Bundle Diameter max (metric) 20.0mm
    Bundling Bar Length 39.0mm
    Height (H) 14.2mm
    Length (L) 39.0mm
    Min.Tensile Strength 80N
    Width (W) 9.0mm
    for Panel Thickness min - max 1.5 - 4 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026333120
    Packaging 1 - Height (m) 0.065m
    Packaging 1 - Length (m) 0.275m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00563m³
    Packaging 1 - Weight (kg) 1.058362kg
    Packaging 1 - Width (m) 0.315m
    Packaging 3 - Height (m) 0.184m
    Packaging 3 - Length (m) 0.58m
    Packaging 3 - Qty 5000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0406m³
    Packaging 3 - Weight (kg) 11.23862kg
    Packaging 3 - Width (m) 0.38m
    Packaging 4 - Height (m) 1.249m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 120000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.199m³
    Packaging 4 - Weight (kg) 290.76kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121702
