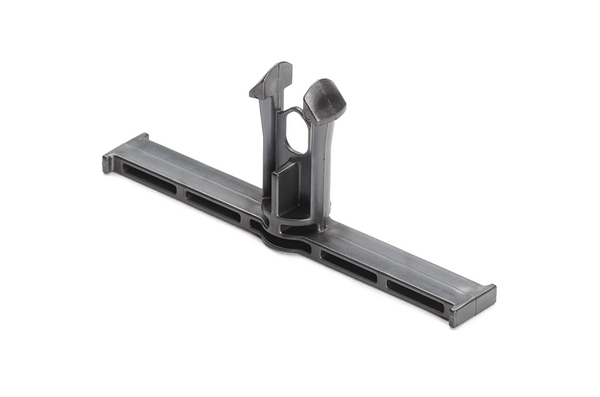

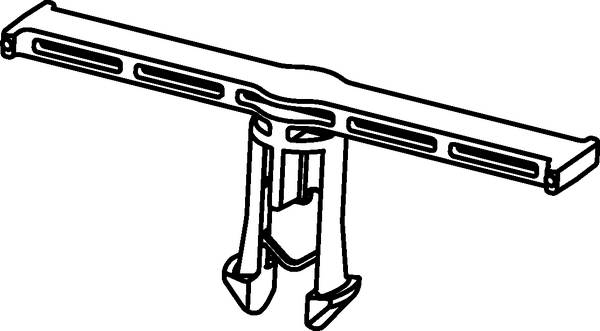

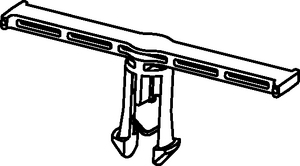

Bundling clip for hole (round), L=75.0mm, silver, 2000pcs.
Art.-No. 151-02177 | BCATC4-PPS-SR |  세부

Colour Silver (SR)
Fixation Method arrowhead
Material Polyphenylene Sulfide (PPS)
PART DESCRIPTION BCATC4-PPS-SR
Pack Content 2000pcs.
Package Content packed in carton
Type BCATC4
Bundling Bar Length 75.0mm
Height (H) 27.34mm
Length (L) 75.0mm
Panel Thickness 0.53 - 0.59"
Panel Thickness max. 13.5 - 15.0mm
Panel Thickness max. (imperial) 0.59"
Panel Thickness min. (imperial) 0.53"
Width (W) 11.43mm
for Hole ∅ (FH) 11.7 - 13.0 mm
for Panel Thickness min - max 13.5 - 15 mm
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
Operating Temperature -40 °C to +150 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised No
GTIN-13 / EAN 4031026587950
Packaging 1 - Height (m) 0.225m
Packaging 1 - Length (m) 0.505m
Packaging 1 - Qty 2000
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.03579m³
Packaging 1 - Weight (kg) 6.672001kg
Packaging 1 - Width (m) 0.315m
Packaging 3 - Height (m) 0.2159m
Packaging 3 - Length (m) 0.606425m
Packaging 3 - Qty 2000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.052m³
Packaging 3 - Weight (kg) 7.78kg
Packaging 3 - Width (m) 0.396875m
Packaging 4 - Height (m) 1.269m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 24000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.218m³
Packaging 4 - Weight (kg) 109.824kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121702
