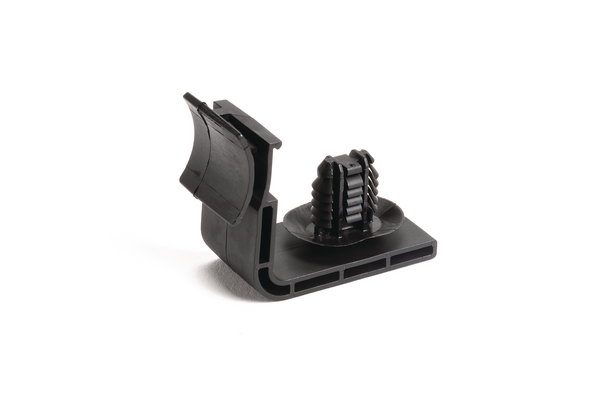

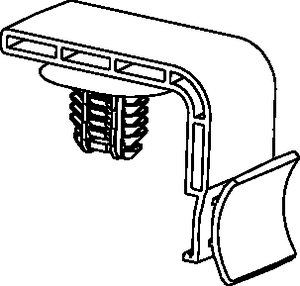

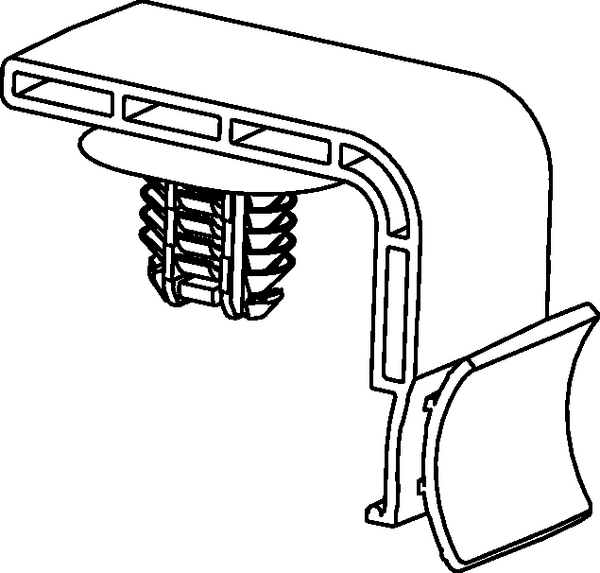

Bundling clip for hole (round), L=66.0mm, SO=32.0mm, black, 1000pcs.
Art.-No. 151-01681
| BCFTOVALAPILLAR-PA66HIRHSUV-BK
|
세부
- Simple installation, tool-free
- Is attached to the bundle element with cable ties or adhesive tape
- The oval base geometry serves as anti-twist protection and for defined cable routing
| Application | These bundling clips are mainly used in the automotive industry, particularly for the assembly of cable harnesses. They offer a simple and user-friendly method for fastening cables, hoses and pipes. |
| Colour | Black (BK) |
| Fixation Method | Fir Tree for oval holes |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | BCFTOVALAPILLAR-PA66HIRHSUV-BK |
| Pack Content | 1000pcs. |
| Package Content packed in | carton |
| Type | BCFTOVALAPILLAR |
| Bundling Bar Length | 66.0mm |
| Fixing Hole Shape | Oval |
| Length (L) | 45.7mm |
| Length (L2) | 45.7mm |
| Offset Length | 32.0mm |
| Panel Thickness | 0.02 - 0.27" |
| Panel Thickness max. | 0.6 - 6.75mm |
| Panel Thickness max. (imperial) | 0.27" |
| Panel Thickness min. (imperial) | 0.02" |
| for Hole ∅ (FH) | 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm |
| for Panel Thickness min - max | 0.6 - 6.8 mm |
