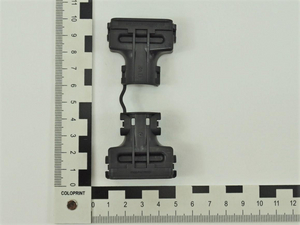

Backshell, 180°, nom∅13.0mm, black, 600pcs.
Art.-No. 151-02445 | BSD180NW13-PA66HS-BK | 세부

Strain relief for corrugated tubes
Four shrouded locks
Strapping points fully integrated with cover for maximum retention of harness
Nominal diameter printed in backshell
Insertion support and pre-catch function audible by clicking simplify the closing, laying of the cables and saves time
Corrugated tube is completely enclosed by backshell, so that tube is not bruised in case of using an additional cable tie and cannot slip out of place especially during movement and vibration
Available in V0-material (flame retardent) especially for vehicles used for transportation of passengers

More products in this product group:

Application	The backshells or covers protecting the individual cables and wires from splashing water and dirt.
Colour	Black (BK)
Key product features	for convoluted tubes or with rib
Material	Polyamide 6.6, heat stabilised (PA66HS)
PART DESCRIPTION	BSD180NW13-PA66HS-BK
Pack Content	600pcs.
Package Content packed in	bag
Product Family	Backshell D, straight, NW 13 CTCS-series
Product Group	Connector Accessory Backshells, Group D
Type	BSD180NW13
