04/04/2025

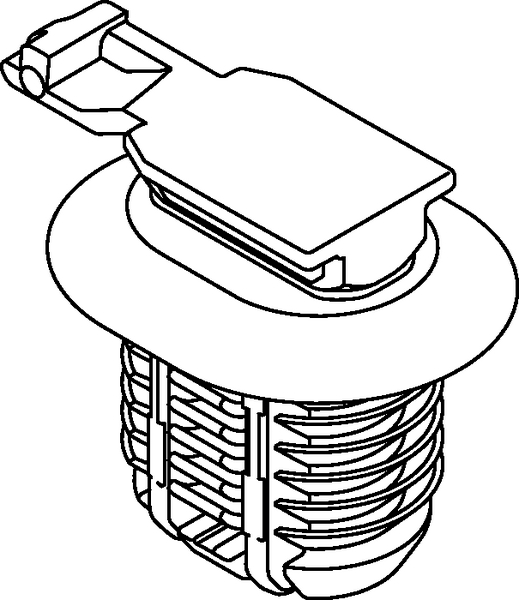

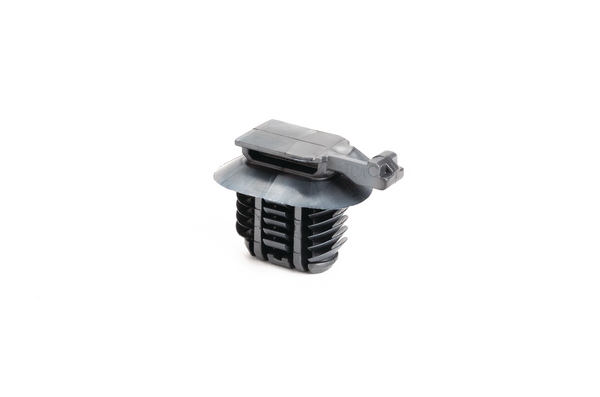

Connector clip for connector/for hole (oval), EWCAP-005-11, silver, 5000pcs.
Art.-No. 151-02896 | CC11B-PPS-SR |

Copied
Oval fir tree ensures a tight connection without rotation.

    • Connector clips provide a single method to mount connectors to various surfaces in a variety of applications.
    • Highly engineered designs feature anti-rattle discs, anti-rotation oval fir trees and clamps for mounting on edges.
    • A wide assortment of styles is available to fit the variety of connector slot designs made by most of the largest global connector manufacturers.
    Downloads
    Colour Silver (SR)
    Fixation Method Fir Tree for oval holes
    Material Polyphenylene Sulfide (PPS)
    PART DESCRIPTION CC11B-PPS-SR
    Pack Content 5000pcs.
    Package Content packed in pack
    Type CC11B
    Height (H) 20.60mm
    Length (L) 30.0mm
    Panel Thickness 0.02 - 0.23"
    Panel Thickness max. 0.6 - 6.0mm
    Panel Thickness max. (imperial) 0.23"
    Panel Thickness min. (imperial) 0.02"
    Width (W) 18.20mm
    for Hole ⌀ (FH) 9.0 x 17.0 mm
    for Panel Thickness min - max 0.6 - 6 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +150 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised No
    GTIN-13 / EAN 4031026702438
    Packaging 1 - Height (m) 0.214m
    Packaging 1 - Length (m) 0.635m
    Packaging 1 - Qty 5000
    Packaging 1 - Type carton
    Packaging 1 - Volume (m³) 0.05177m³
    Packaging 1 - Weight (kg) 10.400001kg
    Packaging 1 - Width (m) 0.381m
    Packaging 3 - Height (m) 0.20954999999999998m
    Packaging 3 - Length (m) 0.6048375m
    Packaging 3 - Qty 5000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0501m³
    Packaging 3 - Weight (kg) 11.59kg
    Packaging 3 - Width (m) 0.39528749999999997m
    Packaging 4 - Height (m) 1.145m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 60000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.099m³
    Packaging 4 - Weight (kg) 151.8kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121702
