23/12/2024

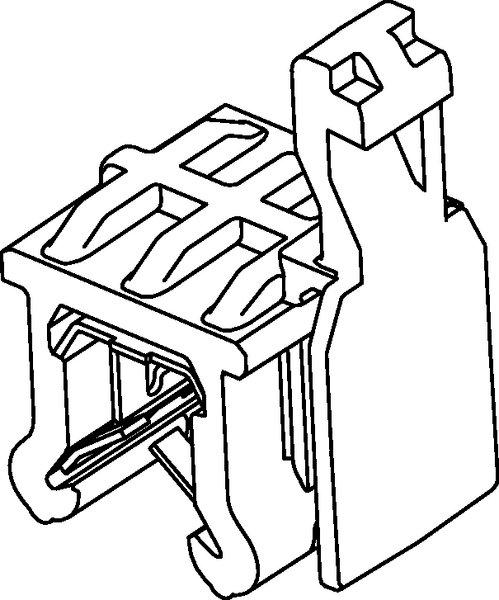

Connector clip, EWCAP-005-11, black, 1000pcs.
Art.-No. 151-02568 | CC11VEC6-PA66HIRHS-BK | 세부

Simply push per hand onto a plastic edge
Connector easily installed by simply pushing into place
Connection can be released (non-destructive)
Integrated metal clamp holds clip firmly in place
Clamp consists of double tempered spring steel
Ideal for applications where holes or adhesives are not suitable

Base Data

Colour	Black (BK)
Material	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION	CC11VEC6-PA66HIRHS-BK
Pack Content	1000pcs.
Package Content packed in	bag
Type	CC11VEC6

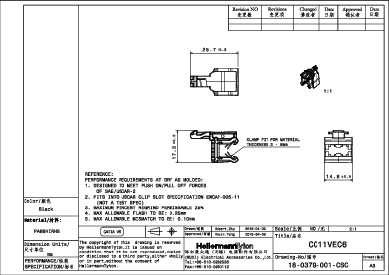

Product Dimensions

Height (H)	17.3mm
Length (L)	25.7mm
Panel Thickness max.	3.0 - 6.0mm
Width (W)	14.9mm
for Panel Thickness min - max	3 - 6 mm

Downloads

Specifications

Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

GTIN-13 / EAN

4031026613505

More Information

UNSPSC Key

39121702
