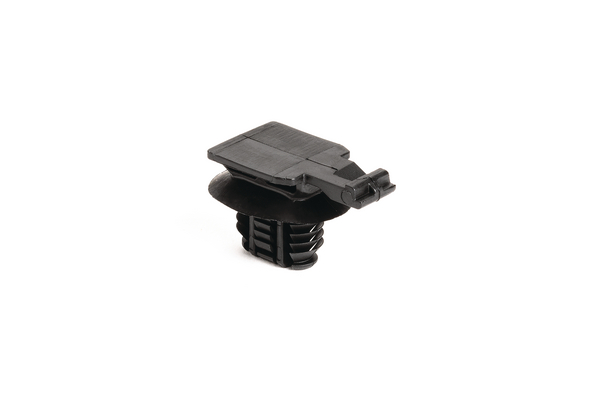

Connector clip, black, 2500Carton
Art.-No. 151-02961 | CC17FT8X15-PA66HIRHSUV-BK |

Copied
Oval fir tree ensures a tight connection without rotation.

    • Connector clips provide a single method to mount connectors to various surfaces in a variety of applications.
    • Highly engineered designs feature anti-rattle discs, anti-rotation oval fir trees and clamps for mounting on edges.
    • A wide assortment of styles is available to fit the variety of connector slot designs made by most of the largest global connector manufacturers.
    Downloads
    Colour Black (BK)
    Fixation Method Fir Tree for oval holes
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION CC17FT8X15-PA66HIRHSUV-BK
    Pack Content 2500Carton
    Package Content packed in box
    Type CC17FT8X15
    Height (H) 19.57mm
    Length (L) 32.7mm
    Panel Thickness 0.02 - 0.27"
    Panel Thickness max. 0.6 - 6.75mm
    Panel Thickness max. (imperial) 0.27"
    Panel Thickness min. (imperial) 0.02"
    Width (W) 18.2mm
    for Hole ⌀ (FH) 8.0 x 15.0 mm
    for Panel Thickness min - max 0.6 - 6.8 mm
    CE Certification No
    CSA Certified No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised Yes
    GTIN-13 / EAN 4031026717579
    Packaging 3 - Height (m) 0.136525m
    Packaging 3 - Length (m) 0.5191125m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0217m³
    Packaging 3 - Width (m) 0.3063875m
    UNSPSC Key 31162305
