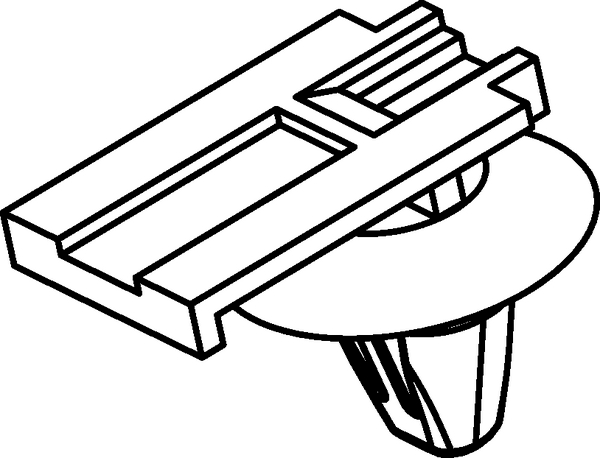

Connector clip, black, 500pcs.
Art.-No. 151-02550 | CC19SFT7-PA66HIRHS-BK |  세부

    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • Arrowhead locks into place for secure fixing at all times
    Downloads
    Colour Black (BK)
    Fixation Method arrowhead
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CC19SFT7-PA66HIRHS-BK
    Pack Content 500pcs.
    Package Content packed in bag
    Type CC19SFT7
    Height (H) 17.4mm
    Length (L) 21.4mm
    Panel Thickness max. 2.3 - 3.0mm
    Width (W) 6.3mm
    for Hole ∅ (FH) 7.0 - 7.2 mm
    for Panel Thickness min - max 2.3 - 3 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026612256
    UNSPSC Key 39121702
