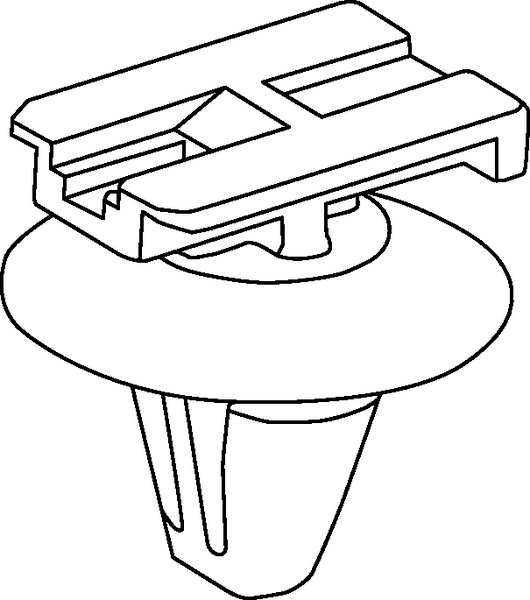

Connector clip for connector/for hole (round), black, 500pcs.
Art.-No. 151-01466 | CC1SFT7PT2.3-3.5-PA66HIRHS-BK |  세부

    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • Arrowhead locks into place for secure fixing at all times
    Downloads
    Colour Black (BK)
    Key product features sealed
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CC1SFT7PT2.3-3.5-PA66HIRHS-BK
    Pack Content 500pcs.
    Package Content packed in bag
    Product Family With Arrowhead
    Product Group Connector Clips for round holes
    Type CC1SFT7PT2.3-3.5
    Length (L) 17.0mm
    Panel Thickness max. 2.3 - 3.5mm
    for Hole ∅ (FH) 6.8 - 7.2 mm
    for Panel Thickness min - max 2.3 - 3.5 mm
    Operating Temperature -40 °C to +105 °C
    GTIN-13 / EAN 4031026541877
    UNSPSC Key 39121702
    Art.-No.: 151-01466 세부 문의
