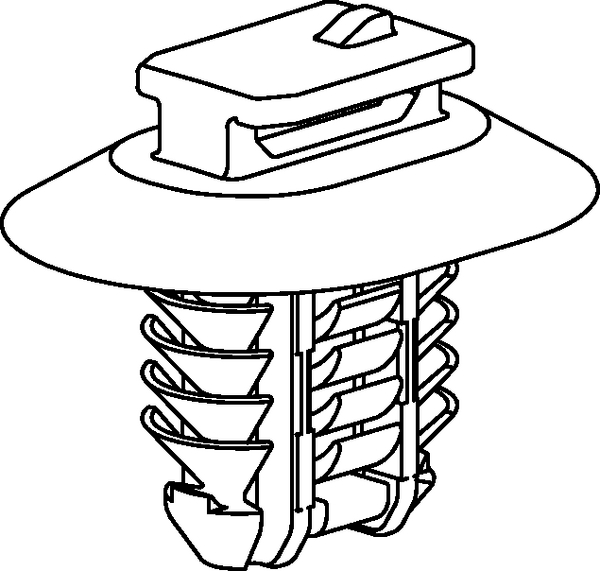

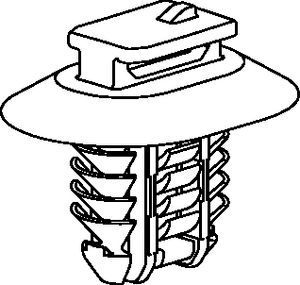

Connector clip for hole (oval), black, 4000pcs.
Art.-No. 151-01286 | CCOVAL5-PA66HIRHSUV-BK |  세부

Connector clip designed to meet USCAR EWCAP -005-11 clip slot specifications.

    Downloads
    Colour Black (BK)
    Fixation Method Fir Tree for oval holes
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION CCOVAL5-PA66HIRHSUV-BK
    Pack Content 4000pcs.
    Package Content packed in carton
    Product Family With FirTree
    Product Group Connector Clips for Oval Holes

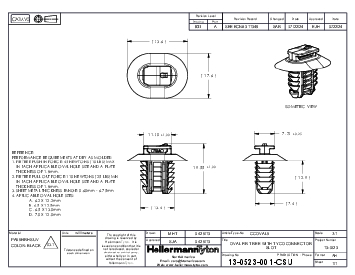

    Type CCOVAL5
    Height (H) 19.55mm
    Height (H2) 12.90mm
    Length (L) 23.60mm
    Panel Thickness 0.02 - 0.27"
    Panel Thickness max. 0.5 - 6.75mm
    Panel Thickness max. (imperial) 0.27"
    Panel Thickness min. (imperial) 0.02"
    Width (W) 17.6mm
    for Hole ∅ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
    for Panel Thickness min - max 0.5 - 6.8 mm
    CE Certification No
    CSA Certified No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant No
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    GTIN-13 / EAN 4031026486918
    Packaging 1 - Weight (kg) 3.642347kg
    Packaging 3 - Height (m) 0.142875m
    Packaging 3 - Length (m) 0.5159375m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0229m³
    Packaging 3 - Width (m) 0.31115m
    UNSPSC Key 39121702
