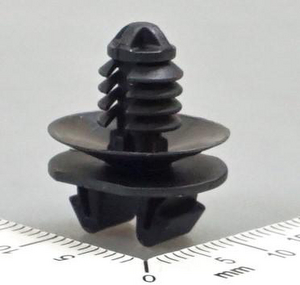

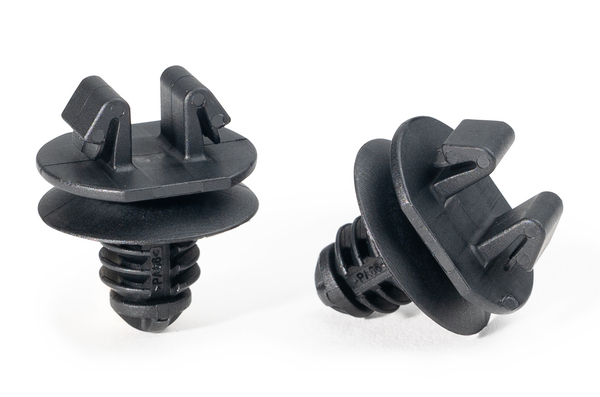

Connector clip, black, 5000pcs.
Art.-No. 151-02932
| CCSCFT6-PA66HIRHS-BK
|
세부
- Connector easily installed by simply pushing into place
- Connection can be released (non-destructive)
- One fir tree foot part can be used for a variety of panel thicknesses
- Disc covers the hole to prevent dirt and water gaining access
- For twist protection: Variants with additional stick or for oval holes
| Application | The connector clips used here have been designed for electronic cables and cable sets used in the automotive industry. |
| Colour | Black (BK) |
| Fixation Method | Fir Tree |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | CCSCFT6-PA66HIRHS-BK |

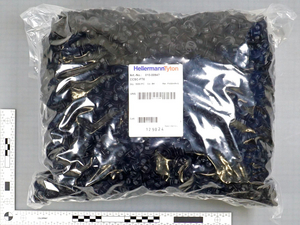

| Pack Content | 5000pcs. |
| Package Content packed in | bag |
| Type | CCSCFT6 |
다운로드
|
|
|
| GTIN-13 / EAN | 4031026624242 |
| Packaging 1 - Height (m) | 0.14m |
| Packaging 1 - Length (m) | 0.47m |
| Packaging 1 - Qty | 5000 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.03586m³ |
| Packaging 1 - Weight (kg) | 3.668597kg |
| Packaging 1 - Width (m) | 0.545m |
| Packaging 3 - Height (m) | 0.184m |
| Packaging 3 - Length (m) | 0.58m |
| Packaging 3 - Qty | 10000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0406m³ |
| Packaging 3 - Weight (kg) | 7.937194kg |
| Packaging 3 - Width (m) | 0.38m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 240000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 211.512kg |
| Packaging 4 - Width (m) | 0.8m |
