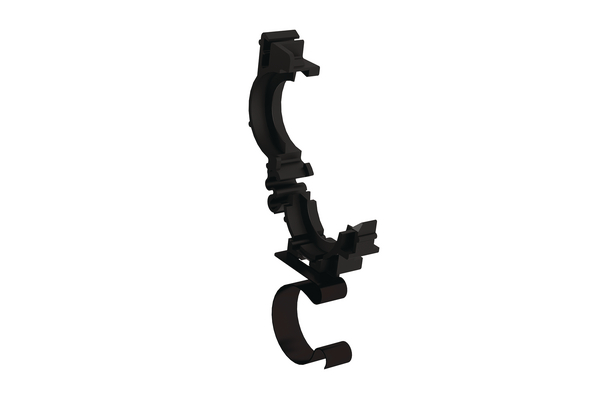

Corrugated tube clip with pipe/tube holder, black, 600pcs.
Art.-No. 151-02625 | CDC19BC25-PA66HIRHS-BK | 세부

Living hinge allows placement and positioning of tubing before locking in place.

Base Data

Colour	Black (BK)
Fixation Method	Bundling Clip
Key product features	for convoluted tubes or with rib
Material	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION	CDC19BC25-PA66HIRHS-BK
Pack Content	600pcs.
Package Content packed in	carton
Type	CDC19BC25

Product Dimensions

⌀ (D2)	27.4mm
⌀ D	0.81"
⌀ D2	1.08"
Attach to ⌀	19
Bundle Diameter max (metric)	25.0mm
Diameter (D)	20.6mm
Height (H)	95.5mm
Length (L)	62.2mm
Offset Length	6.3mm
Width (W)	22.5mm

Downloads

Specifications
More Information

Specifications

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Halogen-free	No
Hazardous Goods	No
Operating Temperature	-40 °C to +110 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US and Canada)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No
UV-Stabilised	No

More Information

UNSPSC Key

39121702
