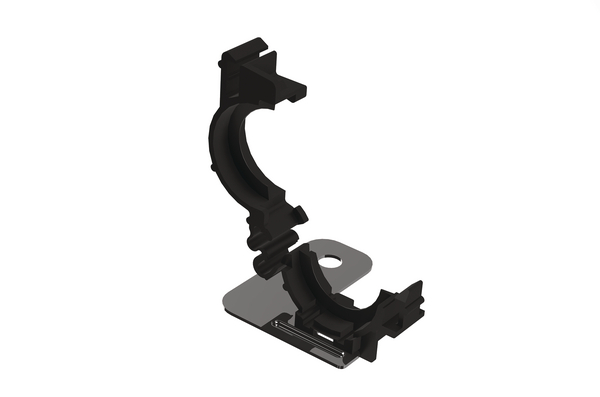

Corrugated tube clip for screw fixation/with pipe/tube holder, black, 800pcs.
Art.-No. 151-02599 | CDC19OSL22.15M6-PA66HIRHS-BK 세부

Colour Black (BK)
Fixation Method screwable
Key product features for convoluted tubes or with rib
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Mounting Screw Type M6 Screw
PART DESCRIPTION CDC19OSL22.15M6-PA66HIRHS-BK
Pack Content 800pcs.
Package Content packed in carton
Type CDC19OSL22.15M6
Attach to Ø 19
Bundle Diameter max (metric) 19.0mm
Diameter (D) 20.6mm
Height (H) 66.8mm
Length (L) 59.2mm
Offset Length 20.15mm
Stud ∅ M6"
Stud ∅ M6
Width (W) 45mm
for Hole ∅ (FH) 6.5 mm
∅ (D2) 27.0mm
∅ D 0.81"
∅ D2 1.06"
CE Certification No
CSA Certified No
Flammability UL 94 HB
Halogen-free No
Hazardous Goods No
Operating Temperature -40 °C to +110 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised No
UNSPSC Key 39121702
