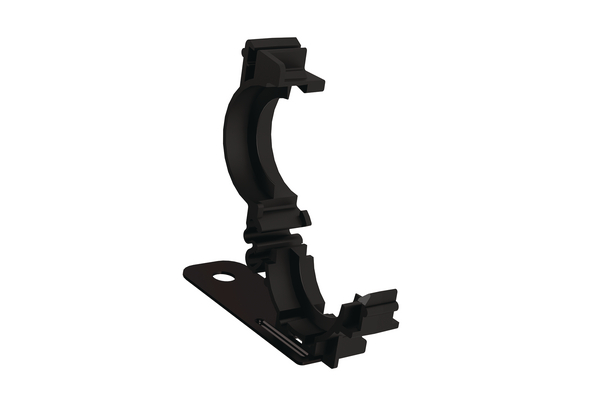

Corrugated tube clip for screw fixation/with pipe/tube holder, black, 125pcs.
Art.-No. 133-03472 | CDC22S40.5M6-PA66-BK | 세부

Internal clamp rib prevents movement or rattling.

Base Data

Colour	Black (BK)
Fixation Method	screwable
Key product features	for convoluted tubes or with rib
Material	Polyamide 6.6 (PA66)
Mounting Screw Type	M6 Screw
PART DESCRIPTION	CDC22S40.5M6-PA66-BK
Pack Content	125pcs.
Package Content packed in	carton
Type	CDC22S40.5M6

Product Dimensions

Attach to Ø	22
Bundle Diameter max (metric)	22.0mm
Diameter (D)	23.7mm
Height (H)	72.8mm
Length (L)	72.7mm
Offset Length	40.5mm
Stud ∅	M6"
Stud ∅	M6
Width (W)	23mm
for Hole ∅ (FH)	6.5 mm
∅ (D2)	31.2mm
∅ D	0.93"
∅ D2	1.23"

Downloads

Specifications

CE Certification	No
CSA Certified	No
Flammability	UL 94 V2
Halogen-free	No
Hazardous Goods	No
Operating Temperature	-40 °C to +85 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US and Canada)	No
UL Recognized (US and Canada)	No
UL Recognized (US and Canada)	No
UV-Stabilised	No

Logistics and Packaging

GTIN-13 / EAN	4031026595467
Packaging 3 - Height (m)	0.136525m
Packaging 3 - Length (m)	0.43973749999999995m
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0156m³
Packaging 3 - Width (m)	0.26034999999999997m

More Information

UNSPSC Key

39121702
