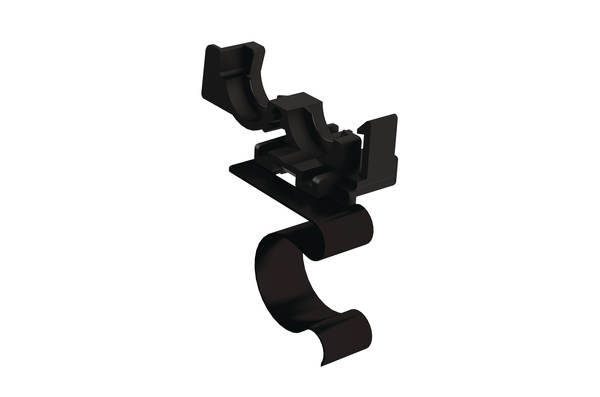

Corrugated tube clip with pipe/tube holder, black, 2000pcs.
Art.-No. 133-03490 | CDC6BC16-PP-BK | 세부

Conduit clamp is releasable to allow for maintenance.

Base Data

Colour	Black (BK)
Fixation Method	Bundling Clip
Key product features	for convoluted tubes or with rib
Material	Polypropylene (PP)
PART DESCRIPTION	CDC6BC16-PP-BK
Pack Content	2000pcs.
Package Content packed in	carton
Type	CDC6BC16

Product Dimensions

⌀ (D2)	12.2mm
⌀ D	0.31"
⌀ D2	0.48"
Attach to ⌀	6
Bundle Diameter max (metric)	16.0mm
Diameter (D)	8.0mm
Height (H)	56.9mm
Length (L)	34.9mm
Offset Length	8.0mm
Width (W)	22.5mm

Downloads

Specifications

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Halogen-free	No
Hazardous Goods	No
Operating Temperature	-40 °C to +115 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US and Canada)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No
UV-Stabilised	No

Logistics and Packaging

GTIN-13 / EAN	4031026595641
Packaging 3 - Height (m)	0.352m
Packaging 3 - Length (m)	0.572m
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0703m³
Packaging 3 - Width (m)	0.349m

More Information

UNSPSC Key

39121702
