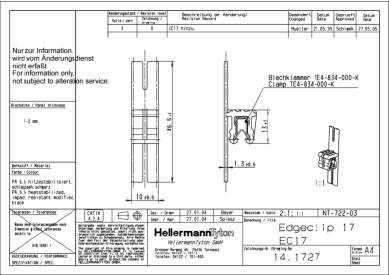

Bundling clip for edge, L=46.5mm, black, 500pcs.
Art.-No. 151-03403
| EC17-PA66HIRHS-BK
|
세부
- Easy assembly, just shuffle manually
Designed for edges of 1 - 3 and 1.5 - 4 mm
Integrated metal clamp holds clip firmly in place
Clamp consists of double tempered steel spring
ATS fixing elements can be tied automatically with tools ATS3080, AT2000 or AT2000CPK
More products in this product group:
CE Certification | No |
CSA Certified | No |
ELV compliant (Article 4 - 2) | YES |
Flammability | UL 94 HB |
Hazardous Goods | No |
Operating Temperature | -40 °C to +105 °C |
ROHS compliant | Yes |
Specifications | |
UL Listed (US and Canada) | No |
UL Listed (US and Canada) | No |
UL Recognized (US and Canada) | No |
UL Recognized (US) | No |
UV-Stabilised | No |
|
|
GTIN-13 / EAN | 4031026235561 |
Packaging 1 - Height (m) | 0.04m |
Packaging 1 - Length (m) | 0.32m |
Packaging 1 - Qty | 500 |
Packaging 1 - Type | bag |
Packaging 1 - Volume (m³) | 0.00371m³ |
Packaging 1 - Weight (kg) | 0.812362kg |
Packaging 1 - Width (m) | 0.29m |
Packaging 3 - Height (m) | 0.204m |
Packaging 3 - Length (m) | 0.591m |
Packaging 3 - Qty | 7000 |
Packaging 3 - Type | box |
Packaging 3 - Volume (m³) | 0.048m³ |
Packaging 3 - Weight (kg) | 12.598692kg |
Packaging 3 - Width (m) | 0.398m |
Packaging 4 - Height (m) | 1.235m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Qty | 140000 |
Packaging 4 - Type | pallet |
Packaging 4 - Volume (m³) | 1.186m³ |
Packaging 4 - Weight (kg) | 272.84kg |
Packaging 4 - Width (m) | 0.8m |
