Cable clip for adhesive use, ∅4.0 mm
Art.-No. 154-00012 | FC1.2A-PA66-GY | 세부

Releasable for easy access to cables when necessary.

Designed to retain flat ribbon cables - ideal for use in computer equipment, gaming machines and domestic appliances
Can be quickly and easily installed using these one-piece fixing clips
Offer the benefits of being easily releasable and re-usable for addition or replacement of cables

Base Data

Colour	Grey (GY)
Fixation Method	adhesive
Key product features	lockable, self adhesive
Material	Polyamide 6.6 (PA66)
PART DESCRIPTION	FC1.2A-PA66-GY
Pack Content	500pcs.
Package Content packed in	bag
Type	FC1.2A

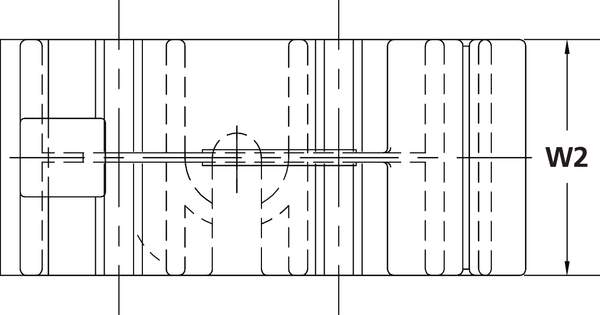

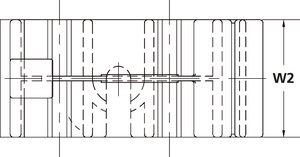

Product Dimensions


For Cable Width Max (imperial)	1.2"
For Cable Width max.	30.48mm
Height (H)	12.7mm
Length (L)	20.57mm
Max. Tie Width (G)	30.48mm
Strap Width max. (G)	1.2"
Width (W)	38.1mm
Width (W2)	0.75"
Width (W2)	19.05mm
for Hole ∅ (FH)	4.0 mm

Downloads

RoHS datasheet

다운로드

Specifications

Adhesive	Acrylate with base of polyurethane foam
Adhesive Operating Temperature	to +110 °C
CE Certification	No
CSA Certified	No
Flammability	UL 94 V2 (excluding adhesive)
Operating Temperature	-40 °C to +85 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US and Canada)	No
UL Recognized (US and Canada)	No
UL Recognized (US and Canada)	No
UV-Stabilised	No

Logistics and Packaging

GTIN-13 / EAN	4031026715070
Packaging 3 - Height (m)	0.212725m
Packaging 3 - Length (m)	0.51435m
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0347m³
Packaging 3 - Width (m)	0.3175m

More Information

UNSPSC Key

39121702
