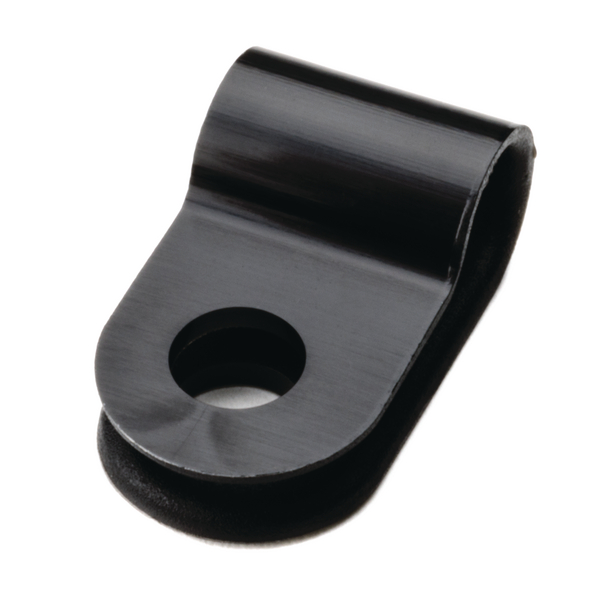

P-clamp closed, Dmax=5.0mm, ⌀4.2 mm, black, 1000pcs.
Art.-No. 211-00262 | H2P-PA66HS-BK |  세부

Designed with radiused edges to prevent chafing and cutting into insulation.

    • Manufactured from Polyamide
    • Good temperature resistance and high strength
    • Wide range of sizes for every application
    • Can be used without cable ties
    Downloads
    Application For permanent or semi-permanent cable fixings this range of plastic P-Clamps can be used in many industries. Their light weight makes them particularly suitable for use in areas such as aircraft and aerospace where minimising weight, but retaining a strong fixing, is vitally important.
    Colour Black (BK)
    Fixation Method screw-hole
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION H2P-PA66HS-BK
    Pack Content 1000pcs.
    Package Content packed in bag
    Product Family HP-Series
    Product Group Plastic P-Clamps
    Type H2P
    Variant Closed
    Bundle Diameter max (metric) 5.0mm
    Fixing Hole Centres (F) 0.37"
    Fixing Hole Centres (F) 9.5mm
    Nominal ⌀ 0.19"
    Nominal ⌀ 5.0mm
    Radius (R) 1.0mm
    Wall (WT) 0.039"
    Wall (WT) 1.0mm
    Width (W) 10.0mm
    for Hole ⌀ (FH) 4.2 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Operating Temperature -40 °C to +125 °C
    ROHS compliant No
    Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.<BR>Sustainable by design focuses on product solutions that reduce waste, improve longevity or support subsequent reuse and recyclability. Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.
    Sustainable by design focuses on product solutions that reduce waste, improve longevity or support subsequent reuse and recyclability.
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised No
    GTIN-13 / EAN 4031026592107
    Packaging 3 - Height (m) 0.142875m
    Packaging 3 - Length (m) 0.5159375m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0229m³
    Packaging 3 - Width (m) 0.31115m
    UNSPSC Key 39121702
