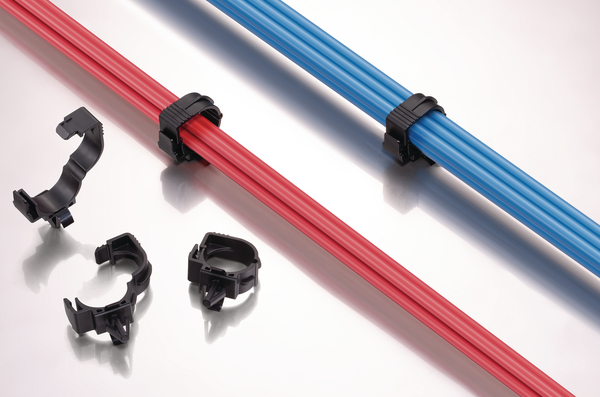

Cable clip for hole (round)/with pipe/tube holder, T=2.6mm, ⌀6.0 - 7.5 mm, Dmin=7.0mm, Dmax=21.0mm
Art.-No. 151-03506
| HC721PM7-PA11W-BK
|
Copied
- Fixing Elements for Tubes and Harnesses and can be used outdoor including salt-damaged areas.
More products in this product group:
| Application | This Fixing Element is pressed into a hole by hand and locked into place with a hearable click. Cable bundles can be applicated afterwards. |
| Colour | Black (BK) |
| Key product features | lockable, rotatable |
| Material | Polyamide 11, UV-resistant (PA11W) |
| PART DESCRIPTION | HC721PM7-PA11W-BK |
| Pack Content | 100pcs. |
| Package Content packed in | bag |
| Product Family | Holder Clip |
| Product Group | Fixing Elements for Tubes and Harnesses |
| Type | HC721PM7 |
다운로드
| Flammability | UL 94 HB |
| Operating Temperature | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Specifications |
|
|
|
Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability. EarthSource denotes HellermannTyton products made from polymers derived from abundant renewable plant-based sources or from the ground underneath. Sustainable by design focuses on product solutions that reduce waste, improve longevity or support subsequent reuse and recyclability. |
