02/11/2024

Cable clip for hole (oval), ∅6.2 x 12.2 mm, Dmin=27.0mm, Dmax=36.0mm
Art.-No. 151-00383 | IAHC4CH-PA6HIRHS-BK |  세부

    • Push and click closure for fixing of wires
    • AHC( )SS und AHC( )SB can be pushed onto a 5.0 mm stud
    • Vibration resistant, rattlefree and secure hold of bundle
    • In case of maintenance easy replacement of bundle possible
    • 360 degree rotatable for guiding bundles in different directions
    Show more

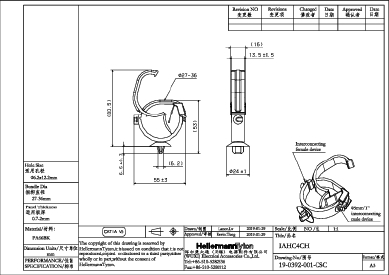

    Downloads CAD-Download
    Application Offering a simple and secure method of attaching cables to panels. Originally designed for the automotive industry, these products are used in a wide range of applications with sheet metal panels across various industries.
    Colour Black (BK)
    Key product features lockable, for faster processing, releasable, vibration absorbing
    Material Polyamide 6, high impact modified, heat stabilised (PA6HIRHS)
    PART DESCRIPTION IAHC4CH-PA6HIRHS-BK
    Pack Content 450pcs.
    Package Content packed in box
    Product Family IAHC-Series
    Product Group Fixing Elements for Tubes and Harnesses with Automatic Locking Feature, interconnectable
    Type IAHC4CH
    Attach to Ø 27.0 - 36.0
    Bundle Diameter max (metric) 36.0mm
    Bundle ∅ min. 27.0mm
    Disc ∅ 24.0mm
    Length (L) 55.0mm
    Length (L2) 6.5mm
    Width (W) 13.5mm
    for Hole ∅ (FH) 6.2 x 12.2 mm
    for Panel Thickness min - max 0.7 - 2 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +80 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026313160
    Packaging 3 - Height (m) 0.3m
    Packaging 3 - Length (m) 0.4m
    Packaging 3 - Qty 450
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.036m³
    Packaging 3 - Weight (kg) 5.13kg
    Packaging 3 - Width (m) 0.3m
    Packaging 4 - Height (m) 1.044m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 10800
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.002m³
    Packaging 4 - Weight (kg) 144.12kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121702
