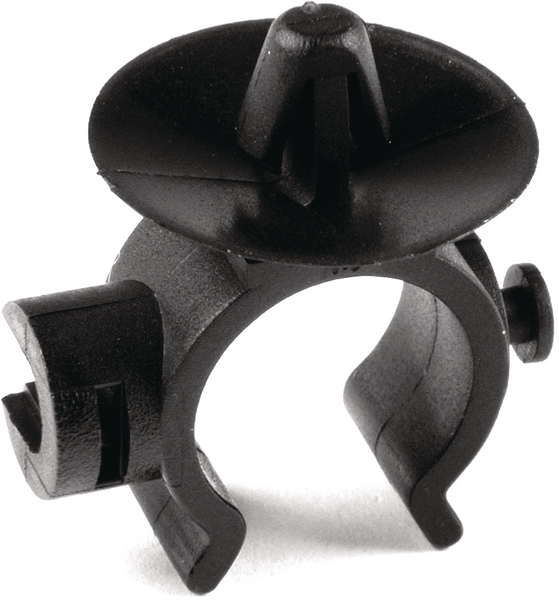

Cable clip, ∅6.3 mm, Dmin=8.5mm, Dmax=12.5mm
Art.-No. 151-14402 | IPC10AH-PA66HIR-BK |  세부

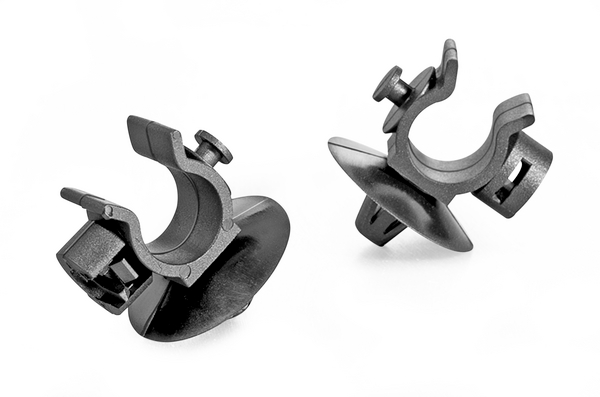

Clips can be connected to offer a greater choice of installation options.

    • Simply clip on a wire or hose
    • Clips to be attached into bore hole
    • Bundles can be released at any time
    Application Originally designed for the automotive industry they are finding a wide and time saving variety of applications in all industries where the use of a cable tie is not suitable.
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified (PA66HIR)
    PART DESCRIPTION IPC10AH-PA66HIR-BK
    Pack Content 500pcs.
    Package Content packed in bag
    Product Family IPC-Series
    Product Group Fixing Elements for Tubes and Harnesses, interconnectable
    Type IPC10AH

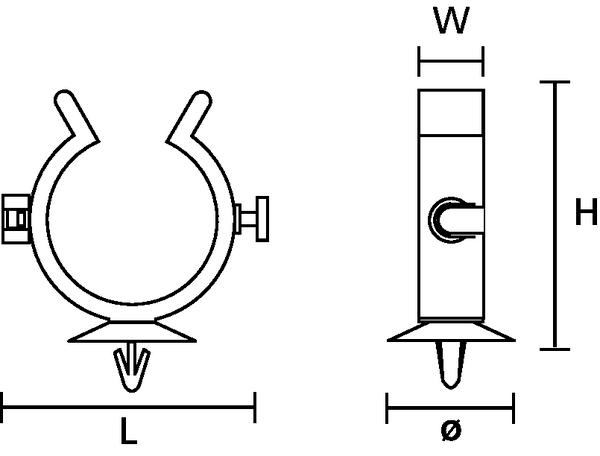

    Bundle Diameter max (metric) 12.5mm
    Bundle ∅ min. 8.5mm
    Disc ∅ 22.0mm
    Height (H) 18.4mm
    Length (L) 22.2mm
    Nominal ∅ 12.5mm
    Width (W) 10.0mm
    for Hole ∅ (FH) 6.3 mm
    for Panel Thickness min - max 0.6 - 1.6 mm
    Flammability UL 94 HB
    Operating Temperature -40 °C to +80 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026710419
    UNSPSC Key 39121702
