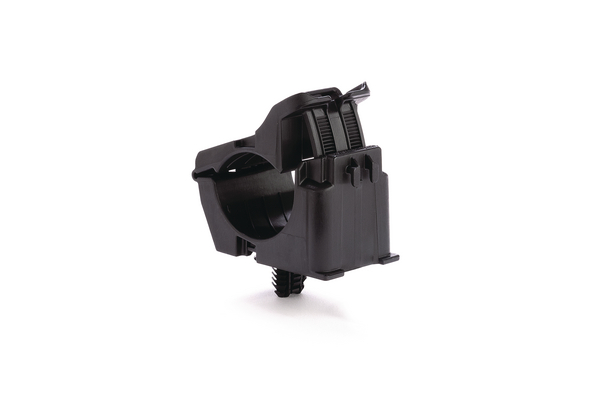

Cable clip, T=0.6 - 6.75mm, ∅7.0 x 12.0 mm, Dmin=19.30mm, Dmax=36.01mm
Art.-No. 156-02638 | IRCCFTOVAL-PA66HIRHSUV-BK |  세부

High-performing oval fir trees ensure anti-twist protection.

    • Building on the Ratchet P-Clamp family, the Center Mount Ratchet Clamp (CMRC) family offers fast and versatile installation of lines, hoses and cables
    • Designed for applications where space is limited or when a staggered mounting option is not ideal
    • Depending on the variant, the CMRC can be screwed on with an M6/M8/M10 screw or attached to an M8 threaded bolt
    • The variants for bolt attachment enable time-saving installation with a reliable hold
    Downloads
    Application The Inline Ratchet Clamp family is a perfect fit when facing space constraints or where offset mounting options are not ideal. Easily twists onto existing threaded rods, eliminating the need for additional hardware. The robust design and durable materials make it ideal for heavy duty applications, both in- and outdoors. The one-piece adjustable clamp can be closed by hand to the desired diameter. The release feature provides easy and nondestructive removal of cables simply by using a flat-head screwdriver. This allows the clamp to be reused without removing or replacing any bolts or screws.
    Colour Black (BK)
    Fixation Method Fir Tree for oval holes
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION IRCCFTOVAL-PA66HIRHSUV-BK
    Pack Content 250pcs.
    Package Content packed in bag
    Product Family In-Line Ratchet P-Clamp, C-Series
    Product Group Fixing elements with fir tree for oval holes
    Type IRCCFTOVAL
    Bundle Diameter max (metric) 36.01mm
    Bundle ∅ min. 19.30mm
    Fixing Hole Shape Oval
    Length (L) 34.8mm
    Min.Tensile Strength 445N
    Panel Thickness 0.02 - 0.27"
    Panel Thickness max. 0.6 - 6.75mm
    Panel Thickness max. (imperial) 0.27"
    Panel Thickness min. (imperial) 0.02"
    Width (W) 34.9mm
    for Hole ∅ (FH) 7.0 x 12.0 mm
    for Panel Thickness min - max 0.6 - 6.8 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    GTIN-13 / EAN 4031026717517
    Packaging 3 - Height (m) 0.37465m
    Packaging 3 - Length (m) 0.59055m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0646m³
    Packaging 3 - Width (m) 0.2921m
    UNSPSC Key 39121702
    라쳇 P 클램프 라쳇 P 클램프

    케이블, 호스 고정을 위한 라쳇 P클램프

    금속 및 플라스틱 케이블 클램프 제품군에 추가된 다용도 제품인 래칫 P-클램프를 만나보세요. 혁신적인 디자인으로 전선, 케이블, 호스 및 파이프를 하나의 장착 지점에 두 번의 작업 단계로 고정할 수 있습니다. 설치 및 유지보수 엔지니어는 더 이상 번들과 클램프를 한 손으로 잡고 다른 한 손으로 고정시킬 필요가 없습니다.

    P클램프 >
    Art.-No.: 156-02638 세부 문의
