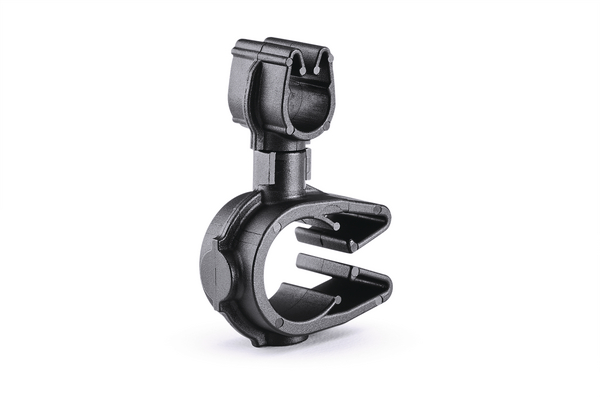

Cable clip with pipe/tube holder, Dmin=9.5mm, Dmax=11.5mm, nom∅=10.0 mm, nom∅2=6.0 mm
Art.-No. 156-02056 | MOC10FMOC6M180-PA66HIRHSUV-BK |  세부

Colour Black (BK)
Key product features for multiple routing, removable
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION MOC10FMOC6M180-PA66HIRHSUV-BK
Pack Content 2000
Package Content packed in carton
Type MOC10FMOC6M180
Variant Clip to Clip Transverse
Attach to Ø 9.5 - 11.5, 5.5 - 6.8
Bundle Diameter Nom. (ND) 10.0 mm
Bundle Diameter Nom. 2 (ND2) 6.0 mm
Bundle Diameter max (metric) 11.5mm
Bundle ∅ 2 max. 6.8mm
Bundle ∅ 2 min. 5.5mm
Bundle ∅ min. 9.5mm
Depth (D) 10.0mm
Height (H) 19.6mm
Length (L) 33.23mm
Length (L2) 18.3mm
CE Certification No
CSA Certified No
Flammability UL 94 HB
Halogen-free Yes
Operating Temperature -40 °C to +110 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised Yes
GTIN-13 / EAN 4031026715506
Packaging 1 - Weight (kg) 201.7kg
UNSPSC Key 39121702
