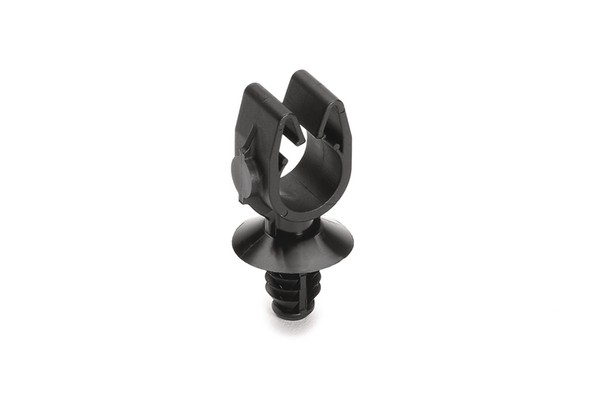

Cable clip for hole (round), T=0.6 - 5.5mm, ⌀6.1 - 6.9 mm/6.35 mm (hexagonal), Dmin=9.5mm, Dmax=11.5mm, nom⌀=10.0 mm
Art.-No. 151-01749
| MOC10FT6.5-PA66HIRHSUV-BK
|
Copied
| Application | These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry. |
| Colour | Black (BK) |
| Fixation Method | Fir Tree |
| Key product features | removable |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | MOC10FT6.5-PA66HIRHSUV-BK |
| Pack Content | 7500 |
| Package Content packed in | pack |
| Type | MOC10FT6.5 |
| Bundle ⌀ max. | 11.5mm |
| Bundle ⌀ min. | 9.5mm |
| Bundle Diameter Nom. (ND) | 10.0 mm |
| Depth (D) | 10.0mm |
| Fixing Hole Shape | Circular |
| Height (H) | 35.4mm |
| Length (L) | 17.0mm |
| Panel Thickness | 0.02 - 0.22" |
| Panel Thickness max. | 0.6 - 5.5mm |
| Panel Thickness max. (imperial) | 0.22" |
| Panel Thickness min. (imperial) | 0.02" |
| for Hole ⌀ (FH) | 6.1 - 6.9 mm, 6.35 mm (hexagonal) |
| for Panel Thickness min - max | 0.6 - 5.5 mm |
다운로드
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| UV-Stabilised | Yes |
