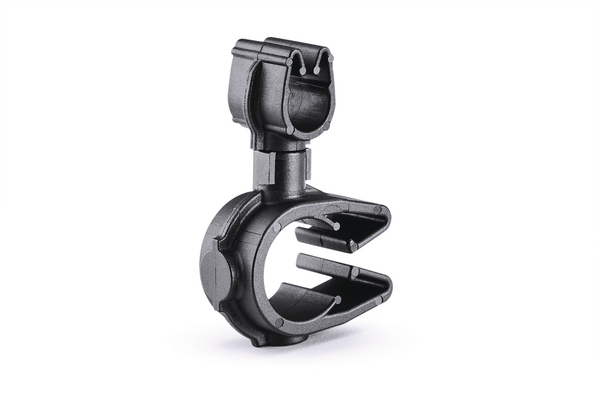

Cable clip with pipe/tube holder, Dmin=10.5mm, Dmax=13.8mm, nom∅=12.0 mm, nom∅2=6.0 mm
Art.-No. 156-02080 | MOC12FMOC6M180-PA66HIRHSUV-BK |  세부

Colour Black (BK)
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION MOC12FMOC6M180-PA66HIRHSUV-BK
Pack Content 2000
Package Content packed in carton
Type MOC12FMOC6M180
Variant Clip to Clip Transverse
Bundle Diameter Nom. (ND) 12.0 mm
Bundle Diameter Nom. 2 (ND2) 6.0 mm
Bundle Diameter max (metric) 13.8mm
Bundle ∅ 2 max. 6.8mm
Bundle ∅ 2 min. 5.5mm
Bundle ∅ min. 10.5mm
Depth (D) 10.0mm
Height (H) 22.1mm
Length (L) 35.08mm
Length (L2) 19.3mm
CE Certification No
CSA Certified No
Flammability UL 94 HB
Halogen-free Yes
Operating Temperature -40 °C to +110 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised Yes
GTIN-13 / EAN 4031026715513
Packaging 1 - Weight (kg) 201.95kg
UNSPSC Key 39121702
