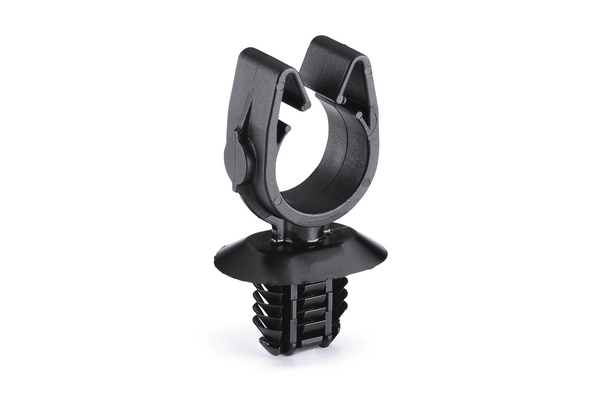

Cable clip for hole (oval)/with pipe/tube holder, T=0.6 - 6.75mm, ∅6.2 x 12.2 mm/6.5 x 12.5 mm, Dmin=10.5mm, Dmax=13.8mm, nom∅=12.0 mm
Art.-No. 151-01759
| MOC12FTOVAL-PA66HIRHSUV-BK
|
세부
- For fixing and bundling convoluted tubes and pipes
- Suitable for nearly every application
More products in this product group:
| Application | These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry. |
| Colour | Black (BK) |
| Fixation Method | Fir Tree |
| Key product features | removable |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | MOC12FTOVAL-PA66HIRHSUV-BK |
| Pack Content | 2000 |
| Package Content packed in | carton |
| Product Family | with fir tree for oval holes, MOC -Series |
| Product Group | Fixing elements for tubes and pipes |
| Type | MOC12FTOVAL |
| Bundle Diameter Nom. (ND) | 12.0 mm |
| Bundle Diameter max (metric) | 13.8mm |
| Bundle ∅ min. | 10.5mm |
| Depth (D) | 10.0mm |
| Fixing Hole Shape | Oval |
| Height (H) | 39.5mm |
| Length (L) | 23.6mm |
| Panel Thickness | 0.02 - 0.27" |
| Panel Thickness max. | 0.6 - 6.75mm |
| Panel Thickness max. (imperial) | 0.27" |
| Panel Thickness min. (imperial) | 0.02" |
| for Hole ∅ (FH) | 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm |
| for Panel Thickness min - max | 0.6 - 6.8 mm |
다운로드
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +110 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | Yes |
|
|
|
| GTIN-13 / EAN | 4031026572048 |
| Packaging 1 - Height (m) | 0.2m |
| Packaging 1 - Length (m) | 0.51m |
| Packaging 1 - Qty | 2000 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.03162m³ |
| Packaging 1 - Weight (kg) | 4.412kg |
| Packaging 1 - Width (m) | 0.31m |
| Packaging 3 - Height (m) | 0.212725m |
| Packaging 3 - Length (m) | 0.51435m |
| Packaging 3 - Qty | 2000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0347m³ |
| Packaging 3 - Weight (kg) | 5.38kg |
| Packaging 3 - Width (m) | 0.3175m |
| Packaging 4 - Height (m) | 1.276m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 80000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.225m³ |
| Packaging 4 - Weight (kg) | 300.0kg |
| Packaging 4 - Width (m) | 0.8m |
