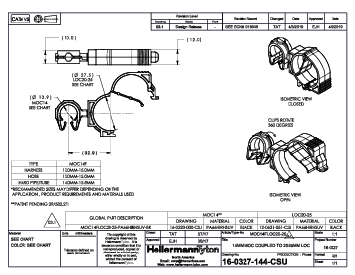

Cable clip with pipe/tube holder, Dmin=13.0mm, Dmax=15.8mm, nom∅=14.0 mm, nom∅2=20.0 mm - 25.0 mm
Art.-No. 156-01914
| MOC14FLOC20-25-PA66HIRHSUV-BK
|
세부
| Colour | Black (BK) |
| Key product features | removable, for multiple routing, rotatable |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | MOC14FLOC20-25-PA66HIRHSUV-BK |
| Pack Content | 1000pcs. |
| Package Content packed in | carton |
| Type | MOC14FLOC20-25 |
| Variant | Clip to Clamp |
| Attach to Ø | 13.0 - 15.8, 20.0 - 25.0 |
| Bundle Diameter Nom. (ND) | 14.0 mm |
| Bundle Diameter Nom. 2 (ND2) | 20.0 mm - 25.0 mm |
| Bundle Diameter max (metric) | 15.8mm |
| Bundle ∅ 2 max. | 25.0mm |
| Bundle ∅ 2 min. | 20.0mm |
| Bundle ∅ min. | 13.0mm |
| Depth (D) | 12.0mm |
| Height (H) | 38.9mm |
| Height (H2) | 23.8mm |
| Length (L) | 59.00mm |
| Length (L2) | 32.9mm |
