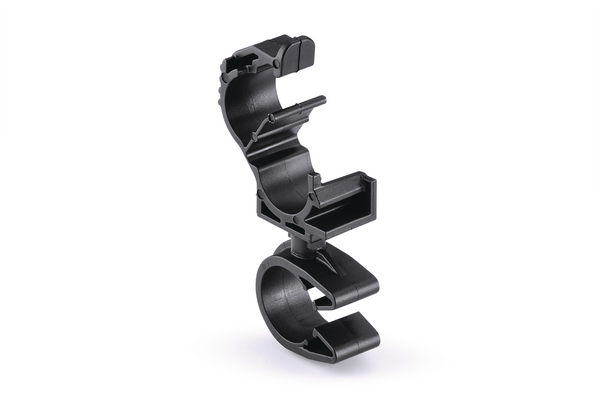

Cable clip with pipe/tube holder, Dmin=13.0mm, Dmax=15.8mm, nom∅=14.0 mm, nom∅2=5.0 mm - 9.0 mm
Art.-No. 156-01841 | MOC14FLOC5-9-PA66HIRHSUV-BK |  세부

Colour Black (BK)
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION MOC14FLOC5-9-PA66HIRHSUV-BK
Pack Content 2000
Package Content packed in carton
Type MOC14FLOC5-9
Variant Clip to Clamp
Bundle Diameter Nom. (ND) 14.0 mm
Bundle Diameter Nom. 2 (ND2) 5.0 mm - 9.0 mm
Bundle Diameter max (metric) 15.8mm
Bundle ∅ 2 max. 9.0mm
Bundle ∅ 2 min. 5.0mm
Bundle ∅ min. 13.0mm
Depth (D) 12.0mm
Height (H) 23.8mm
Height (H2) 23.8mm
Length (L) 45.10mm
Length (L2) 25.5mm
CE Certification No
CSA Certified No
Flammability UL 94 HB
Halogen-free Yes
Operating Temperature -40 °C to +110 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised Yes
GTIN-13 / EAN 4031026715377
Packaging 1 - Weight (kg) 203.8kg
UNSPSC Key 39121702
