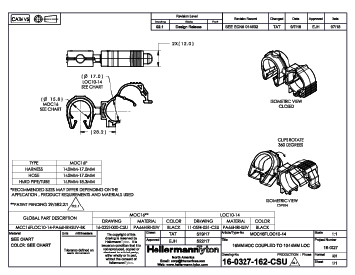

Cable clip with pipe/tube holder, Dmin=14.0mm, Dmax=18.3mm, nom∅=16.0 mm, nom∅2=10.0 mm - 14.0 mm
Art.-No. 156-01867
| MOC16FLOC10-14-PA66HIRHS-BK
|
세부
| Attach to Ø | 14.0 - 18.3, 10.0 - 14.0 |
| Bundle Diameter Nom. (ND) | 16.0 mm |
| Bundle Diameter Nom. 2 (ND2) | 10.0 mm - 14.0 mm |
| Bundle Diameter max (metric) | 18.3mm |
| Bundle ∅ 2 max. | 14.0mm |
| Bundle ∅ 2 min. | 10.0mm |
| Bundle ∅ min. | 14.0mm |
| Depth (D) | 12.0mm |
| Height (H) | 27.4mm |
| Height (H2) | 25.7mm |
| Length (L) | 51.20mm |
| Length (L2) | 28.2mm |
다운로드
| GTIN-13 / EAN | 4031026715636 |
| Packaging 1 - Weight (kg) | 204.73kg |
| Packaging 3 - Height (m) | .421m |
| Packaging 3 - Length (m) | 0.606m |
| Packaging 3 - Qty | 2000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.1021m³ |
| Packaging 3 - Weight (kg) | 9.5kg |
| Packaging 3 - Width (m) | .400m |
| Packaging 4 - Qty | 36000 |
| Packaging 4 - Type | pallet |
