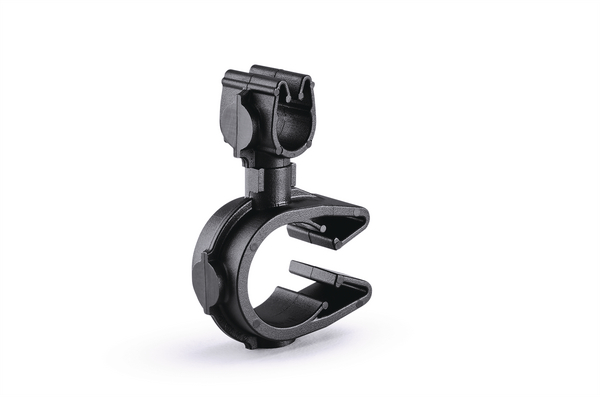

Cable clip with pipe/tube holder, Dmin=14.0mm, Dmax=18.3mm, nom∅=16.0 mm, nom∅2=6.0 mm
Art.-No. 156-02128 | MOC16FMOC6M180-PA66HIRHSUV-BK |  세부

Colour Black (BK)
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION MOC16FMOC6M180-PA66HIRHSUV-BK
Pack Content 2000
Package Content packed in carton
Type MOC16FMOC6M180
Variant Clip to Clip Transverse
Bundle Diameter Nom. (ND) 16.0 mm
Bundle Diameter Nom. 2 (ND2) 6.0 mm
Bundle Diameter max (metric) 18.3mm
Bundle ∅ 2 max. 6.8mm
Bundle ∅ 2 min. 5.5mm
Bundle ∅ min. 14.0mm
Depth (D) 12.0mm
Height (H) 25.7mm
Height (H2) 11.1mm
Length (L) 38.97mm
Length (L2) 21.3mm
CE Certification No
CSA Certified No
Flammability UL 94 HB
Halogen-free Yes
Operating Temperature -40 °C to +110 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised Yes
GTIN-13 / EAN 4031026715537
Packaging 1 - Weight (kg) 202.48kg
UNSPSC Key 39121702
