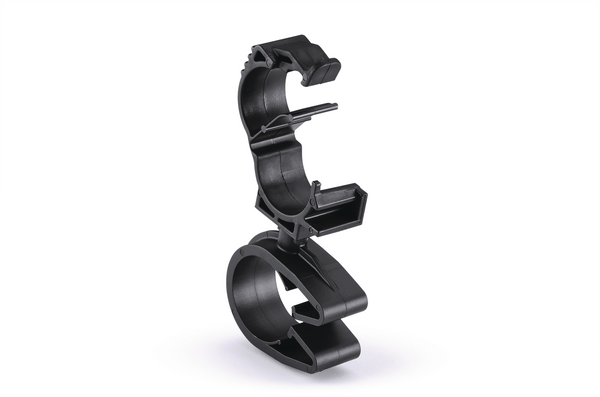

Cable clip with pipe/tube holder, Dmin=17.0mm, Dmax=21.8mm, nom⌀=19.0 mm, nom⌀2=10.0 mm - 14.0 mm
Art.-No. 156-01869 | MOC19FLOC10-14-PA66HIRHSUV-BK | 세부

Base Data

Colour	Black (BK)
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION	MOC19FLOC10-14-PA66HIRHSUV-BK
Pack Content	1000pcs.
Package Content packed in	carton
Type	MOC19FLOC10-14
Variant	Clip to Clamp

Product Dimensions

Bundle ⌀ 2 max.	14.0mm
Bundle ⌀ 2 min.	10.0mm
Bundle ⌀ min.	17.0mm
Bundle Diameter Nom. (ND)	19.0 mm
Bundle Diameter Nom. 2 (ND2)	10.0 mm - 14.0 mm
Bundle Diameter max (metric)	21.8mm
Depth (D)	12.0mm
Height (H)	32.8mm
Height (H2)	32.8mm
Length (L)	54.80mm
Length (L2)	31.0mm

Downloads

Specifications

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Halogen-free	Yes
Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US and Canada)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No
UV-Stabilised	Yes

Logistics and Packaging

GTIN-13 / EAN	4031026715643
Packaging 1 - Weight (kg)	205.82kg
Packaging 3 - Height (m)	0.212725m
Packaging 3 - Length (m)	0.51435m
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0347m³
Packaging 3 - Width (m)	0.3175m

More Information

UNSPSC Key

39121702
