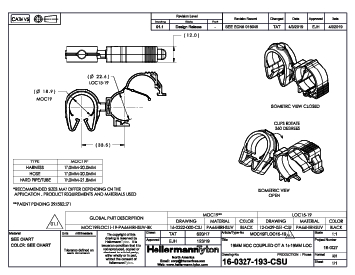

Cable clip with pipe/tube holder, Dmin=17.0mm, Dmax=21.8mm, nom∅=19.0 mm, nom∅2=15.0 mm - 19.0 mm
Art.-No. 156-01893
| MOC19FLOC15-19-PA66HIRHSUV-BK
|
세부
| Colour | Black (BK) |
| Key product features | removable, for multiple routing, rotatable |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | MOC19FLOC15-19-PA66HIRHSUV-BK |
| Pack Content | 1000pcs. |
| Package Content packed in | carton |
| Type | MOC19FLOC15-19 |
| Variant | Clip to Clamp |
| Attach to Ø | 17.0 - 21.8, 15.0 - 19.0 |
| Bundle Diameter Nom. (ND) | 19.0 mm |
| Bundle Diameter Nom. 2 (ND2) | 15.0 mm - 19.0 mm |
| Bundle Diameter max (metric) | 21.8mm |
| Bundle ∅ 2 max. | 19.0mm |
| Bundle ∅ 2 min. | 15.0mm |
| Bundle ∅ min. | 17.0mm |
| Depth (D) | 12.0mm |
| Height (H) | 33.4mm |
| Height (H2) | 32.8mm |
| Length (L) | 55.50mm |
| Length (L2) | 33.5mm |
