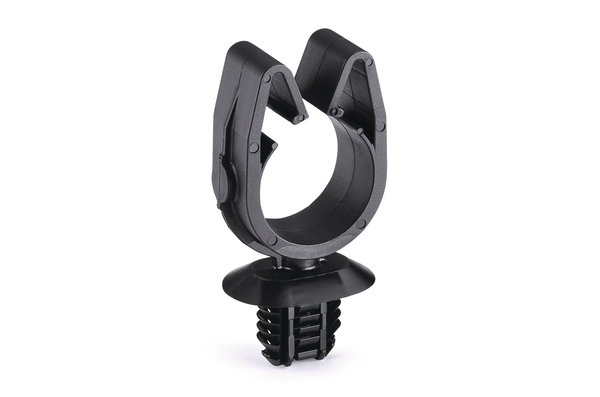

Cable clip for hole (oval)/with pipe/tube holder, T=0.6 - 6.75mm, ∅6.2 x 12.2 mm/6.5 x 12.5 mm, Dmin=17.0mm, Dmax=21.8mm, nom∅=19.0 mm
Art.-No. 151-01789
| MOC19FTOVAL-PA66HIRHSUV-BK
|
세부
| Application | These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry. |
| Colour | Black (BK) |
| Fixation Method | Fir Tree |
| Key product features | removable |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | MOC19FTOVAL-PA66HIRHSUV-BK |
| Pack Content | 1000pcs. |
| Package Content packed in | bag |
| Type | MOC19FTOVAL |
| Bundle Diameter Nom. (ND) | 19.0 mm |
| Bundle Diameter max (metric) | 21.8mm |
| Bundle ∅ min. | 17.0mm |
| Depth (D) | 12.0mm |
| Fixing Hole Shape | Oval |
| Height (H) | 49.9mm |
| Length (L) | 27.2mm |
| Panel Thickness | 0.02 - 0.27" |
| Panel Thickness max. | 0.6 - 6.75mm |
| Panel Thickness max. (imperial) | 0.27" |
| Panel Thickness min. (imperial) | 0.02" |
| for Hole ∅ (FH) | 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm |
| for Panel Thickness min - max | 0.6 - 6.8 mm |
