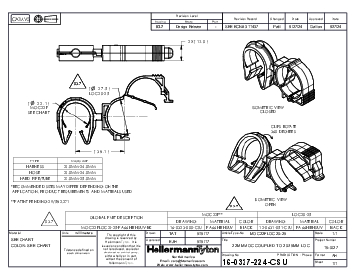

Cable clip with pipe/tube holder, Dmin=20.0mm, Dmax=25.0mm, nom∅=22.0 mm, nom∅2=20.0 mm - 25.0 mm
Art.-No. 156-01920
| MOC22FLOC20-25-PA66HIRHSUV-BK
|
세부
| Colour | Black (BK) |
| Key product features | removable, for multiple routing, rotatable |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | MOC22FLOC20-25-PA66HIRHSUV-BK |
| Pack Content | 1000pcs. |
| Package Content packed in | carton |
| Type | MOC22FLOC20-25 |
| Variant | Clip to Clamp |
| Attach to Ø | 20.0 - 25.0, 20.0 - 25.0 |
| Bundle Diameter Nom. (ND) | 22.0 mm |
| Bundle Diameter Nom. 2 (ND2) | 20.0 mm - 25.0 mm |
| Bundle Diameter max (metric) | 25.0mm |
| Bundle ∅ 2 max. | 25.0mm |
| Bundle ∅ 2 min. | 20.0mm |
| Bundle ∅ min. | 20.0mm |
| Depth (D) | 12.0mm |
| Height (H) | 38.9mm |
| Height (H2) | 36.5mm |
| Length (L) | 66.00mm |
| Length (L2) | 38.1mm |
다운로드
| GTIN-13 / EAN | 4031026715889 |
| Packaging 1 - Weight (kg) | 207.38kg |
| Packaging 3 - Height (m) | 0.20955m |
| Packaging 3 - Length (m) | 0.606425m |
| Packaging 3 - Qty | 1000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0504m³ |
| Packaging 3 - Weight (kg) | 8.4kg |
| Packaging 3 - Width (m) | 0.396875m |
| Packaging 4 - Qty | 30000 |
