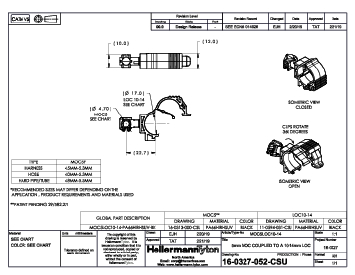

Cable clip with pipe/tube holder, Dmin=4.0mm, Dmax=5.5mm, nom∅=5.0 mm, nom∅2=10.0 mm - 14.0 mm
Art.-No. 156-01851
| MOC5FLOC10-14-PA66HIRHSUV-BK
|
세부
| Attach to Ø | 4.0 - 5.5, 10.0 - 14.0 |
| Bundle Diameter Nom. (ND) | 5.0 mm |
| Bundle Diameter Nom. 2 (ND2) | 10.0 mm - 14.0 mm |
| Bundle Diameter max (metric) | 5.5mm |
| Bundle ∅ 2 max. | 14.0mm |
| Bundle ∅ 2 min. | 10.0mm |
| Bundle ∅ min. | 4.0mm |
| Depth (D) | 12.0mm |
| Height (H) | 27.4mm |
| Height (H2) | 10.8mm |
| Length (L) | 39.10mm |
| Length (L2) | 22.9mm |
다운로드
