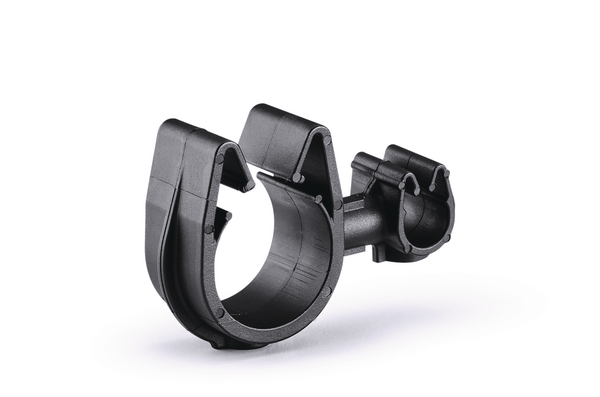

Cable clip with pipe/tube holder, Dmin=5.5mm, Dmax=6.8mm, nom∅=6.0 mm, nom∅2=16.0 mm
Art.-No. 156-02300 | MOC6FMOC16M-PA66HIRHSUV-BK | 세부

Base Data

Colour	Black (BK)
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION	MOC6FMOC16M-PA66HIRHSUV-BK
Pack Content	2000
Package Content packed in	carton
Type	MOC6FMOC16M
Variant	Clip to Clip

Product Dimensions

Bundle Diameter Nom. (ND)	6.0 mm
Bundle Diameter Nom. 2 (ND2)	16.0 mm
Bundle Diameter max (metric)	6.8mm
Bundle ∅ 2 max.	18.3mm
Bundle ∅ 2 min.	14.0mm
Bundle ∅ min.	5.5mm
Depth (D)	12.0mm
Height (H)	25.7mm
Height (H2)	25.7mm
Length (L)	39.0mm
Length (L2)	21.9mm

Downloads

Specifications

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Halogen-free	Yes
Operating Temperature	-40 °C to +110 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US and Canada)	No
UL Recognized (US and Canada)	No
UL Recognized (US and Canada)	No
UV-Stabilised	Yes

Logistics and Packaging

GTIN-13 / EAN	4031026717371
Packaging 1 - Weight (kg)	202.48kg

More Information

UNSPSC Key

39121702
