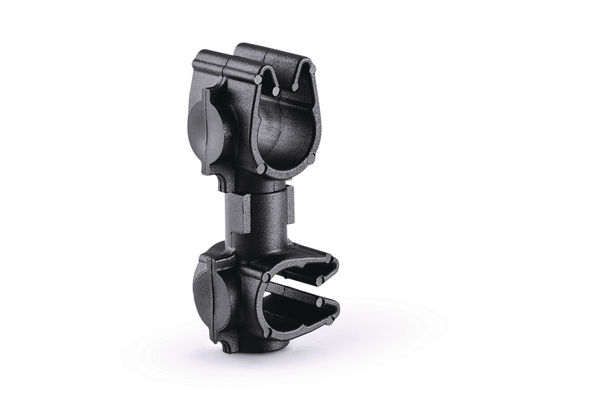

Cable clip with pipe/tube holder, Dmin=5.5mm, Dmax=6.8mm, nom∅=6.0 mm, nom∅2=7.0 mm
Art.-No. 156-01950 | MOC6FMOC7M180-PA66HIRHSUV-BK |  세부

Colour Black (BK)
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION MOC6FMOC7M180-PA66HIRHSUV-BK
Pack Content 2000
Package Content packed in carton
Type MOC6FMOC7M180
Variant Clip to Clip Transverse
Bundle Diameter Nom. (ND) 6.0 mm
Bundle Diameter Nom. 2 (ND2) 7.0 mm
Bundle Diameter max (metric) 6.8mm
Bundle ∅ 2 max. 8.0mm
Bundle ∅ 2 min. 6.0mm
Bundle ∅ min. 5.5mm
Depth (D) 10.0mm
Height (H) 12.0mm
Length (L) 29.15mm
Length (L2) 16.5mm
CE Certification No
CSA Certified No
Flammability UL 94 HB
Halogen-free Yes
Operating Temperature -40 °C to +110 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised Yes
GTIN-13 / EAN 4031026716138
Packaging 1 - Weight (kg) 201.17kg
UNSPSC Key 39121702
