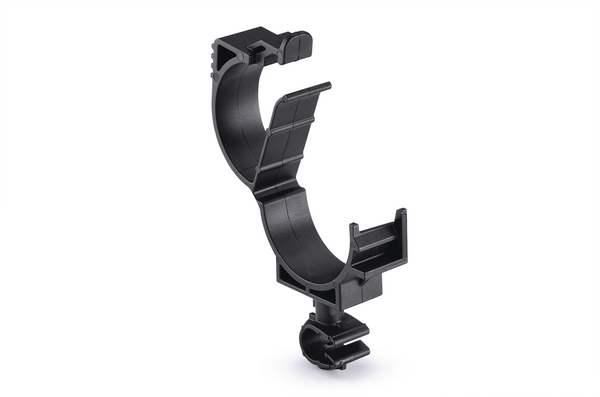

Cable clip with pipe/tube holder, Dmin=6.0mm, Dmax=8.0mm, nom∅=7.0 mm, nom∅2=20.0 mm - 25.0 mm
Art.-No. 156-01904
| MOC7FLOC20-25-PA66HIRHSUV-BK
|
세부
| Attach to Ø | 6.0 - 8.0, 20.0 - 25.0 |
| Bundle Diameter Nom. (ND) | 7.0 mm |
| Bundle Diameter Nom. 2 (ND2) | 20.0 mm - 25.0 mm |
| Bundle Diameter max (metric) | 8.0mm |
| Bundle ∅ 2 max. | 25.0mm |
| Bundle ∅ 2 min. | 20.0mm |
| Bundle ∅ min. | 6.0mm |
| Depth (D) | 12.0mm |
| Height (H) | 38.9mm |
| Height (H2) | 13.4mm |
| Length (L) | 51.10mm |
| Length (L2) | 29.3mm |
