23/12/2024

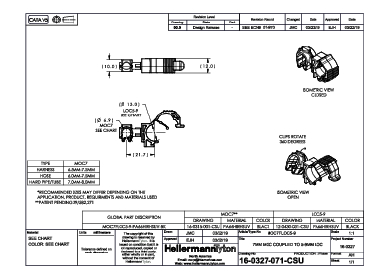

Cable clip with pipe/tube holder, Dmin=6.0mm, Dmax=8.0mm, nom∅=7.0 mm, nom∅2=5.0 mm - 9.0 mm
Art.-No. 156-01831 | MOC7FLOC5-9-PA66HIRHSUV-BK |  세부

Colour Black (BK)
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION MOC7FLOC5-9-PA66HIRHSUV-BK
Pack Content 2000pcs.
Package Content packed in carton
Type MOC7FLOC5-9
Variant Clip to Clamp
Bundle Diameter Nom. (ND) 7.0 mm
Bundle Diameter Nom. 2 (ND2) 5.0 mm - 9.0 mm
Bundle Diameter max (metric) 8.0mm
Bundle ∅ 2 max. 9.0mm
Bundle ∅ 2 min. 5.0mm
Bundle ∅ min. 6.0mm
Depth (D) 12.0mm
Height (H) 23.6mm
Height (H2) 13.4mm
Length (L) 37.20mm
Length (L2) 21.7mm
CE Certification No
CSA Certified No
Flammability UL 94 HB
Halogen-free Yes
Operating Temperature -40 °C to +110 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised Yes
GTIN-13 / EAN 4031026715322
Packaging 1 - Weight (kg) 202.84kg
Packaging 3 - Height (m) 0.212725m
Packaging 3 - Length (m) 0.51435m
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0347m³
Packaging 3 - Width (m) 0.3175m
UNSPSC Key 39121702
Art.-No.: 156-01831 세부 문의
