13/11/2024

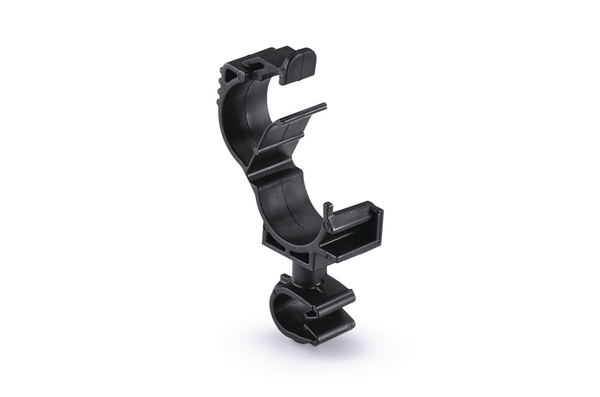

Cable clip with pipe/tube holder, Dmin=7.0mm, Dmax=9.0mm, nom∅=8.0 mm, nom∅2=10.0 mm - 14.0 mm
Art.-No. 156-01857 | MOC8FLOC10-14-PA66HIRHSUV-BK |  세부

Colour Black (BK)
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION MOC8FLOC10-14-PA66HIRHSUV-BK
Pack Content 1000
Package Content packed in carton
Type MOC8FLOC10-14
Variant Clip to Clamp
Bundle Diameter Nom. (ND) 8.0 mm
Bundle Diameter Nom. 2 (ND2) 10.0 mm - 14.0 mm
Bundle Diameter max (metric) 9.0mm
Bundle ∅ 2 max. 14.0mm
Bundle ∅ 2 min. 10.0mm
Bundle ∅ min. 7.0mm
Depth (D) 12.0mm
Height (H) 27.4mm
Height (H2) 15.20mm
Length (L) 42.60mm
Length (L2) 24.5mm
CE Certification No
CSA Certified No
Flammability UL 94 HB
Halogen-free Yes
Operating Temperature -40 °C to +110 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised Yes
GTIN-13 / EAN 4031026715582
Packaging 1 - Weight (kg) 203.59kg
Packaging 3 - Height (m) 0.20955m
Packaging 3 - Length (m) 0.517525m
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0344m³
Packaging 3 - Width (m) 0.3175m
UNSPSC Key 39121702
Art.-No.: 156-01857 세부 문의
Base Data Product Dimensions Specifications Logistics and Packaging Downloads
