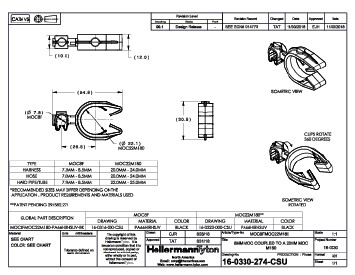

Cable clip with pipe/tube holder, Dmin=7.0mm, Dmax=9.0mm, nom∅=8.0 mm, nom∅2=22.0 mm
Art.-No. 156-02017 | MOC8FMOC22M180-PA66HIRHSUV-BK |  세부

Colour Black (BK)
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION MOC8FMOC22M180-PA66HIRHSUV-BK
Pack Content 2000
Package Content packed in carton
Type MOC8FMOC22M180
Variant Clip to Clip Transverse
Bundle Diameter Nom. (ND) 8.0 mm
Bundle Diameter Nom. 2 (ND2) 22.0 mm
Bundle Diameter max (metric) 9.0mm
Bundle ∅ 2 max. 25.0mm
Bundle ∅ 2 min. 20.0mm
Bundle ∅ min. 7.0mm
Depth (D) 12.0mm
Height (H) 30.5mm
Height (H2) 30.5mm
Length (L) 54.80mm
Length (L2) 26.5mm
CE Certification No
CSA Certified No
Flammability UL 94 HB
Halogen-free Yes
Operating Temperature -40 °C to +110 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised Yes
GTIN-13 / EAN 4031026716992
Packaging 1 - Weight (kg) 204.3kg
Packaging 3 - Height (m) 0.20955m
Packaging 3 - Length (m) 0.606425m
Packaging 3 - Qty 2000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0504m³
Packaging 3 - Weight (kg) 9.27kg
Packaging 3 - Width (m) 0.396875m
Packaging 4 - Qty 60000
UNSPSC Key 39121702
